TD-D5R36W
- - Large Screen Display: Features a 7" LCD touch screen with 1024x600 resolution.
- - Advanced Features: Supports call, photo capture, video recording, remote unlocking, and visitor record.
- - Enhanced Security: Incorporates pedestrian detection, automatic photo and video capture, and sending alarms to both indoor monitor and phone App.
- - Secure Lock Control: Offers compatibility with magnetic locks and electronic locks, complete with locking delay time settings.
- - Connectivity and App Integration: Connects through 2.4G WiFi and seamlessly integrates with the Tuya App.
Specifications
| Whole Unit | |
| Adapter |
input: AC100-240V 50/60Hz output: DC12V 2A |
| Distance (Between Indoor Monitor and Outdoor Station) |
0~50m (RVV2*0.5mm², 12V voltage) 0~200m (RVV2*0.5mm², 24V voltage) |
| Distance (Between Outdoor Station and Door Lock) | 0~50m (RVV2*0.5mm²) |
| Wiring | 2-wire connection (No polarity) |
| Working Temperature | -20°C~70°C |
| Working Relative Humidity | 10%~70% |
| Call Duration | 2 minutes |
| 2-Way Audio | support |
| Tuya APP | 20 users capacity, supports functions including: call, photo, video, monitor, unlock, cloud storage, alarm message, video playback |

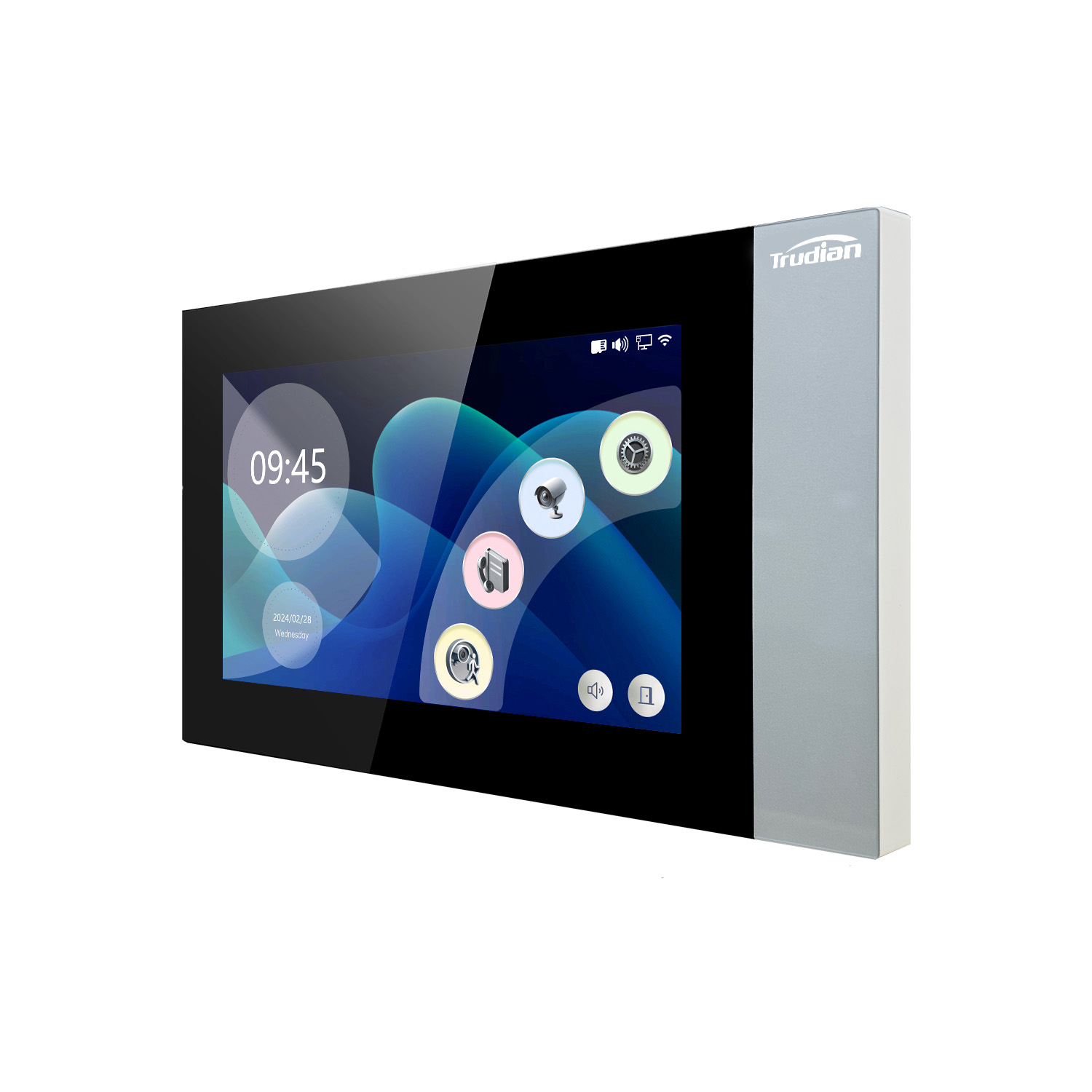

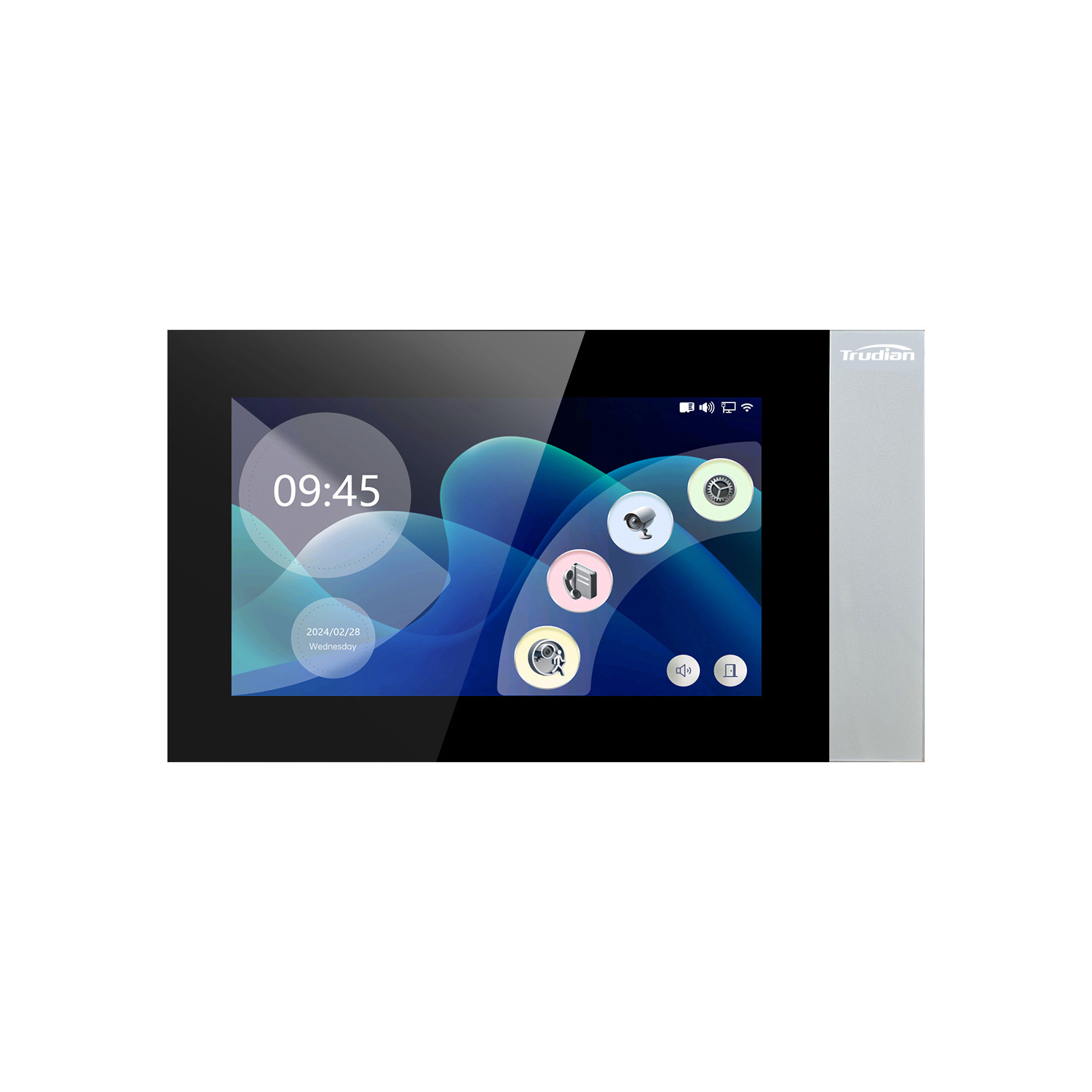

| Indoor Monitor | |
| Dimensions | 219x124x20mm |
| Display | 7" LCD touch screen |
| Screen Resolution | 1024*600 |
| OS | Embedded Linux |
|
Random Access Memory |
128M |
|
Flash |
16M |
| Material | engineering ABS plastic and tempered glass |
| Power Consumption |
static state <3W working state <4W |
| Working Voltage | DC 12~24V |
| Network | 2.4G WiFi |
| Installation | wall-mounted |
| Functions | call, photo, video, monitor, unlock, visitor record, pedestrian detection, calendar display, adjust brightness & contrast & color & volumn, lock delay adjustment, multi-language OSD menu |
| External TF Card | max 512GB storage, automatically save photo and video |
| Photo Storage Capacity | 1000 |

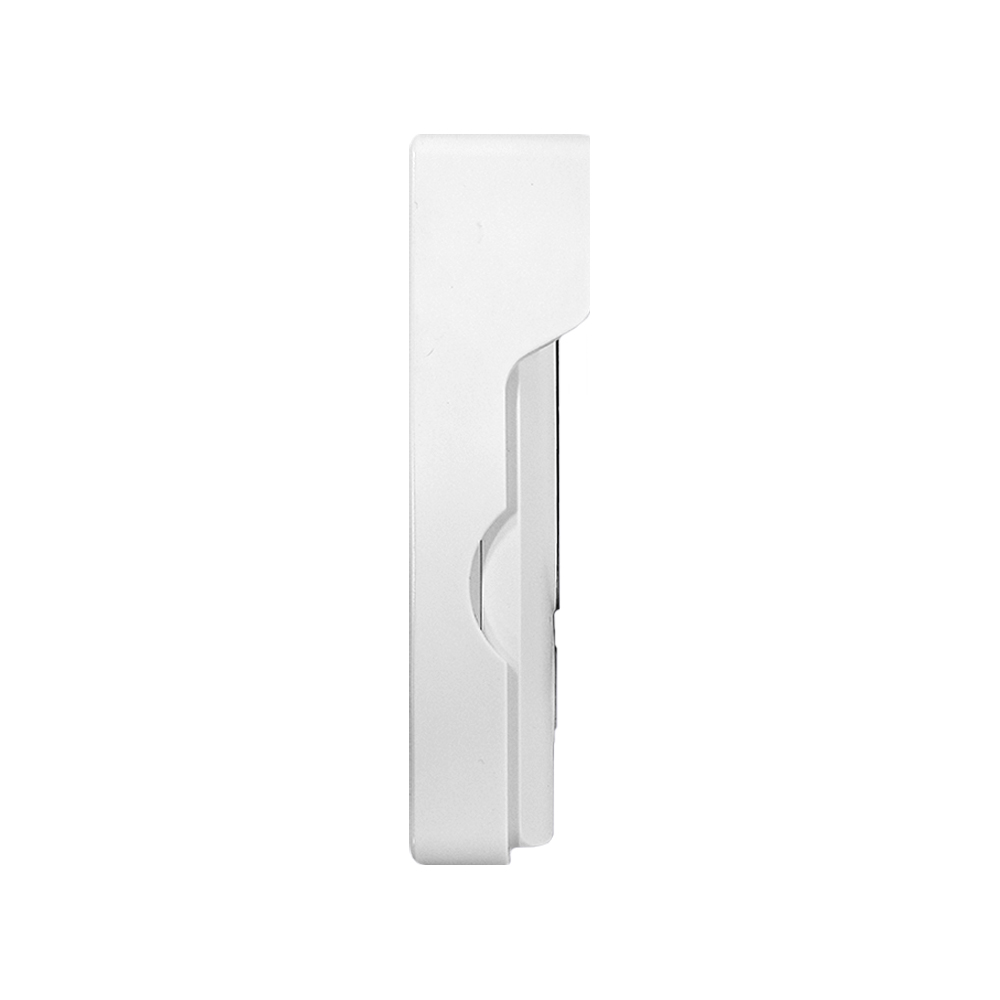

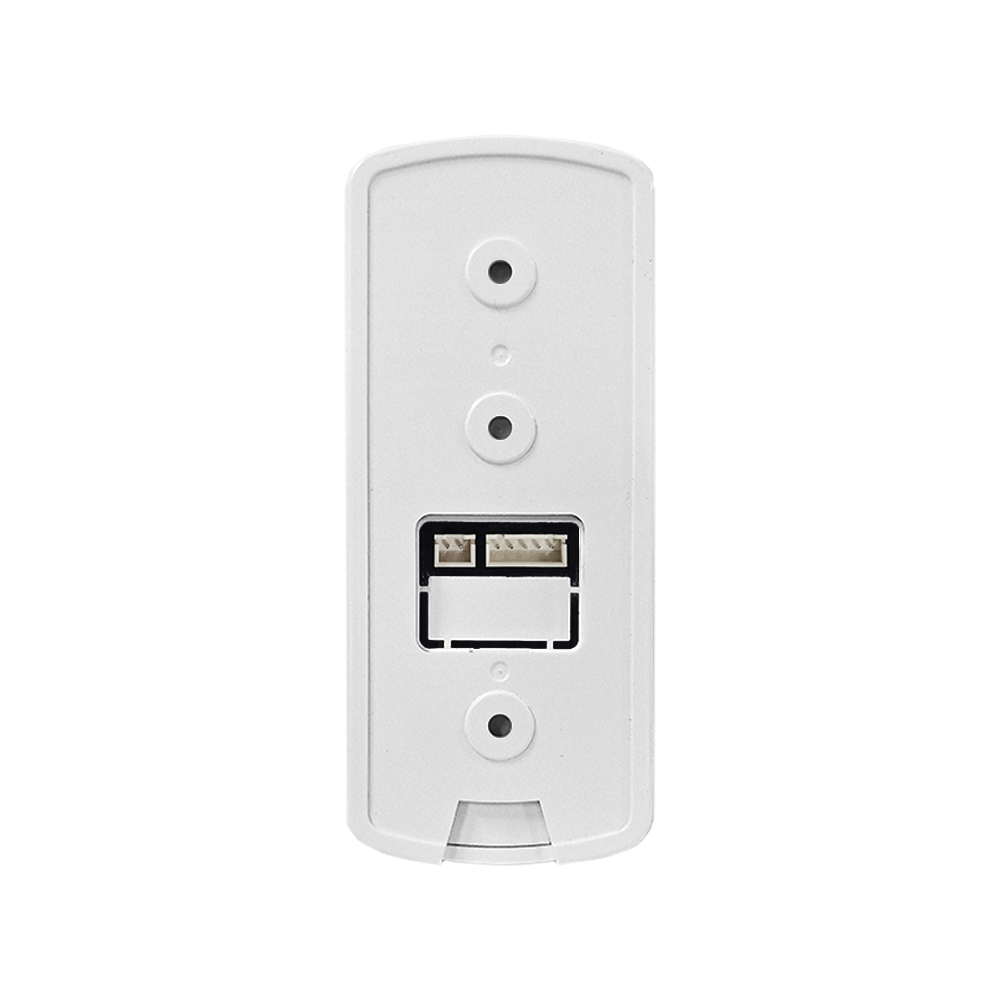

| Outdoor Station | |
| Dimensions | 62.2x148.1x34.5mm |
| Material | engineering ABS plastic |
| Camera | 2 million pixels/1080P |
| View Angle | 110° |
| Night Vision | IR CUT switch, high color precision, black and white image |
| Fill Light | 940nm (6 Infrared LED) |
| Door Lock Control | connectable to magnetic lock and electronic lock, indoor monitor features lock delay time setting |
| Smart Motion Detection | photo and video |
| Power Consumption |
static state <2W, working state <4W |
| Installation | wall-mounted |
| IP Rating | IP65 |
