  • - Large Screen Display: Equipped with a 7" IPS touch screen for clear visual.
  • - Advanced Capabilities: Supports calling, photo capture, video recording, remote unlocking, and visitor record keeping.
  • - Enhanced Security: Features pedestrian detection, automatic photo and video capture, and alarm notifications sent to both the indoor monitor and mobile app.
  • - Durable Design: The outdoor station is constructed with aluminum metal shell for increased durability.
  • - Convenient Access: Includes IC card unlocking for added convenience.
  • - Connectivity and APP Integration: Connects via 2.4G WiFi and integrates seamlessly with the Tuya app for remote control.
  • - Extra Outdoor Station: Equipped with an additional outdoor station, designed to bring greater control, flexibility, and peace of mind.
Share to

Specifications

Whole Unit
Adapter input: AC100-240V 50/60Hz
output: DC12V 2A
Distance (Between Indoor Monitor and Outdoor Station) 0~50m (RVV2*0.5mm², 12V voltage)
0~200m (RVV2*0.5mm², 24V voltage)
Distance (Between Outdoor Station and Door Lock) 0~50m (RVV2*0.5mm²)

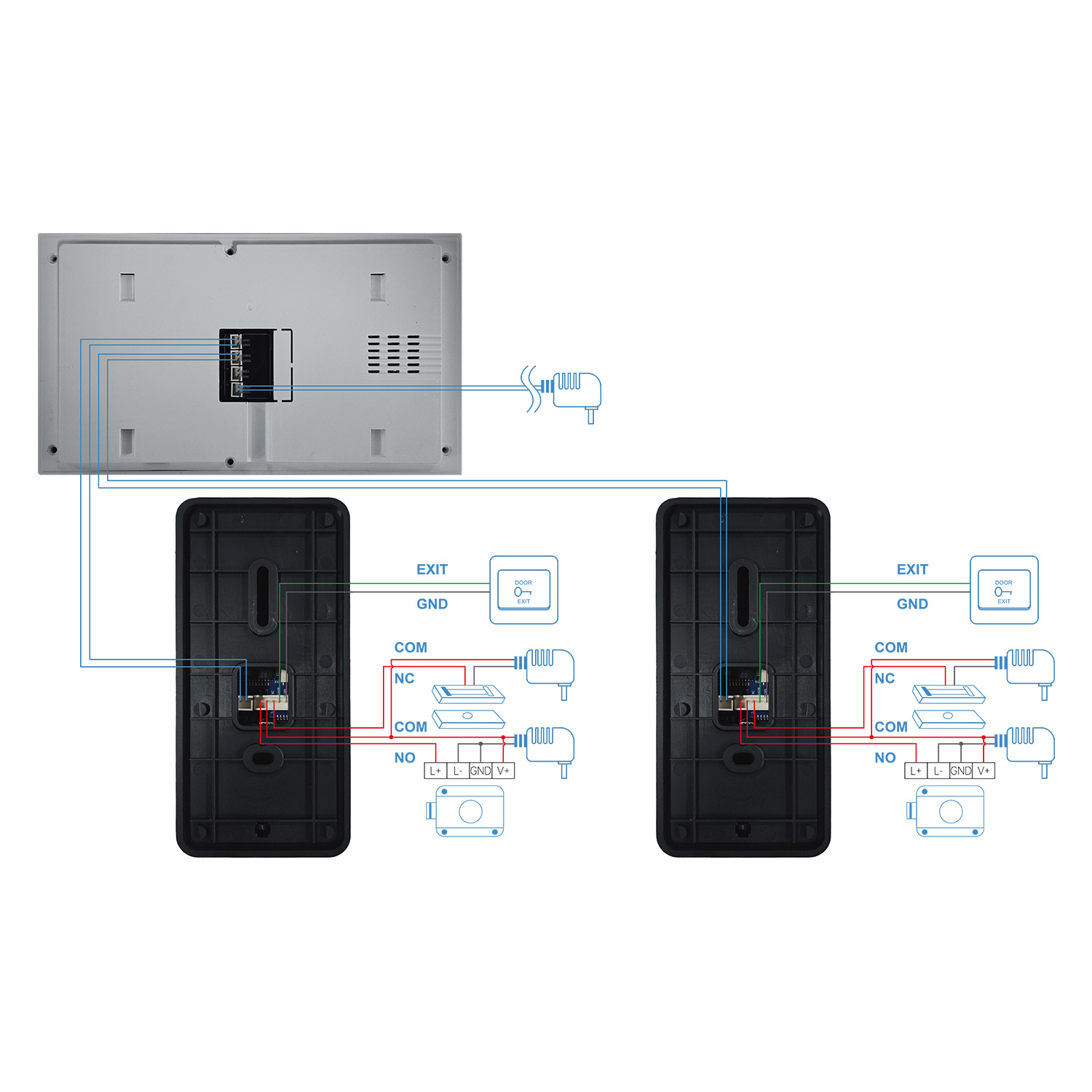

Wiring 2-wire connection (No polarity)
Working Temperature -20°C~70°C
Working Relative Humidity 10%~70%
Call Duration 2 minutes
2-Way Audio support
Tuya App 20 users capacity, supports functions including: call, photo, video, monitor, unlock, cloud storage, alarm message, video playback

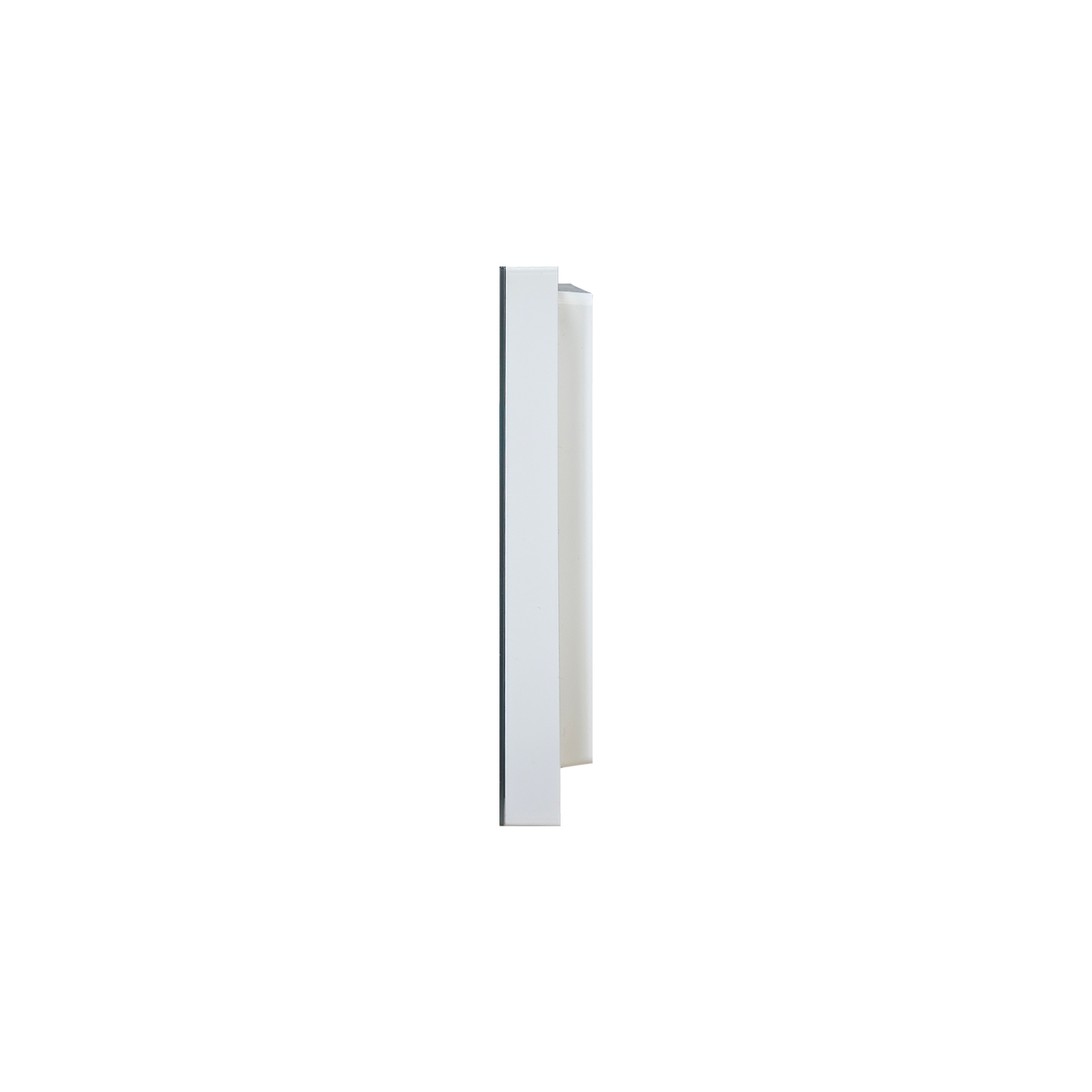

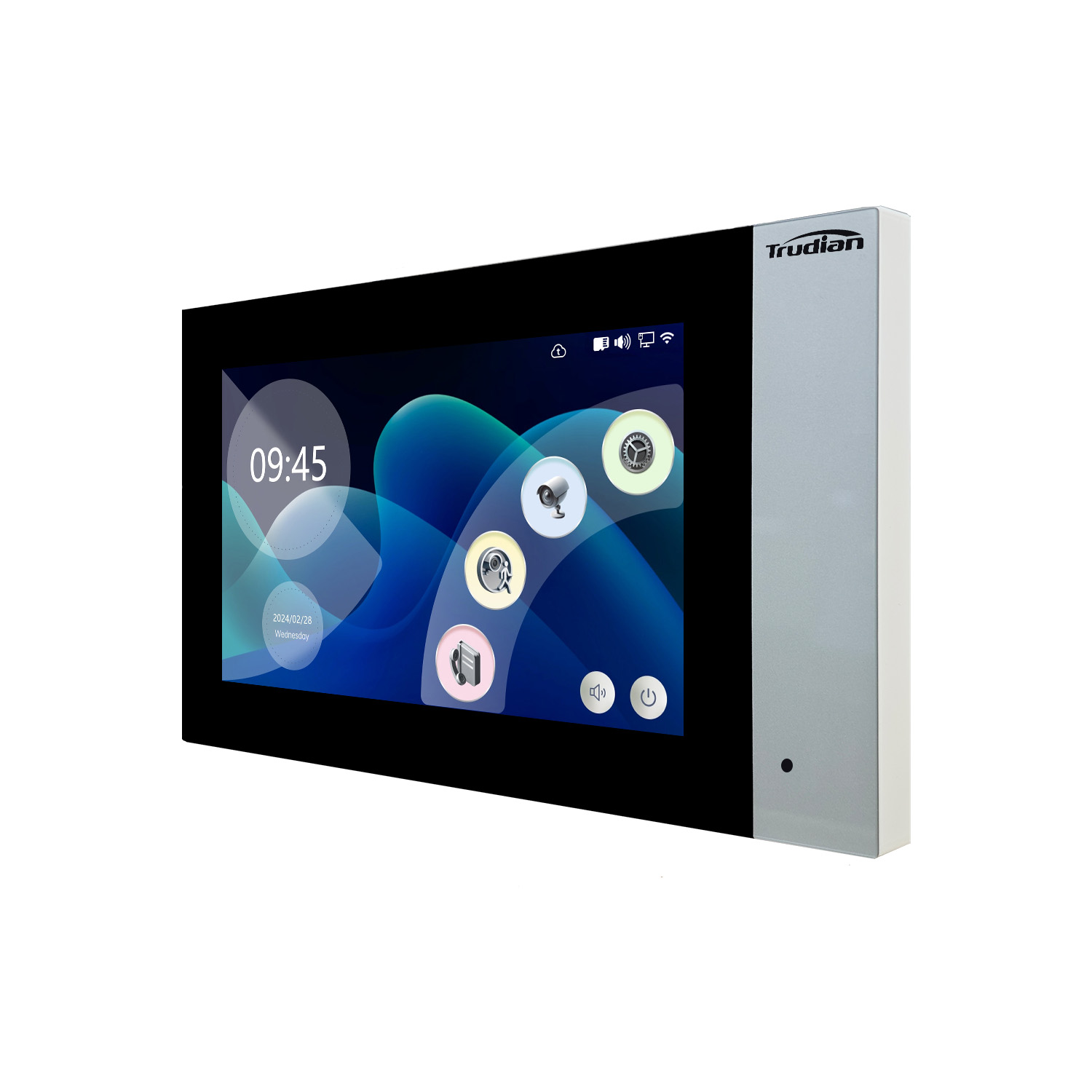

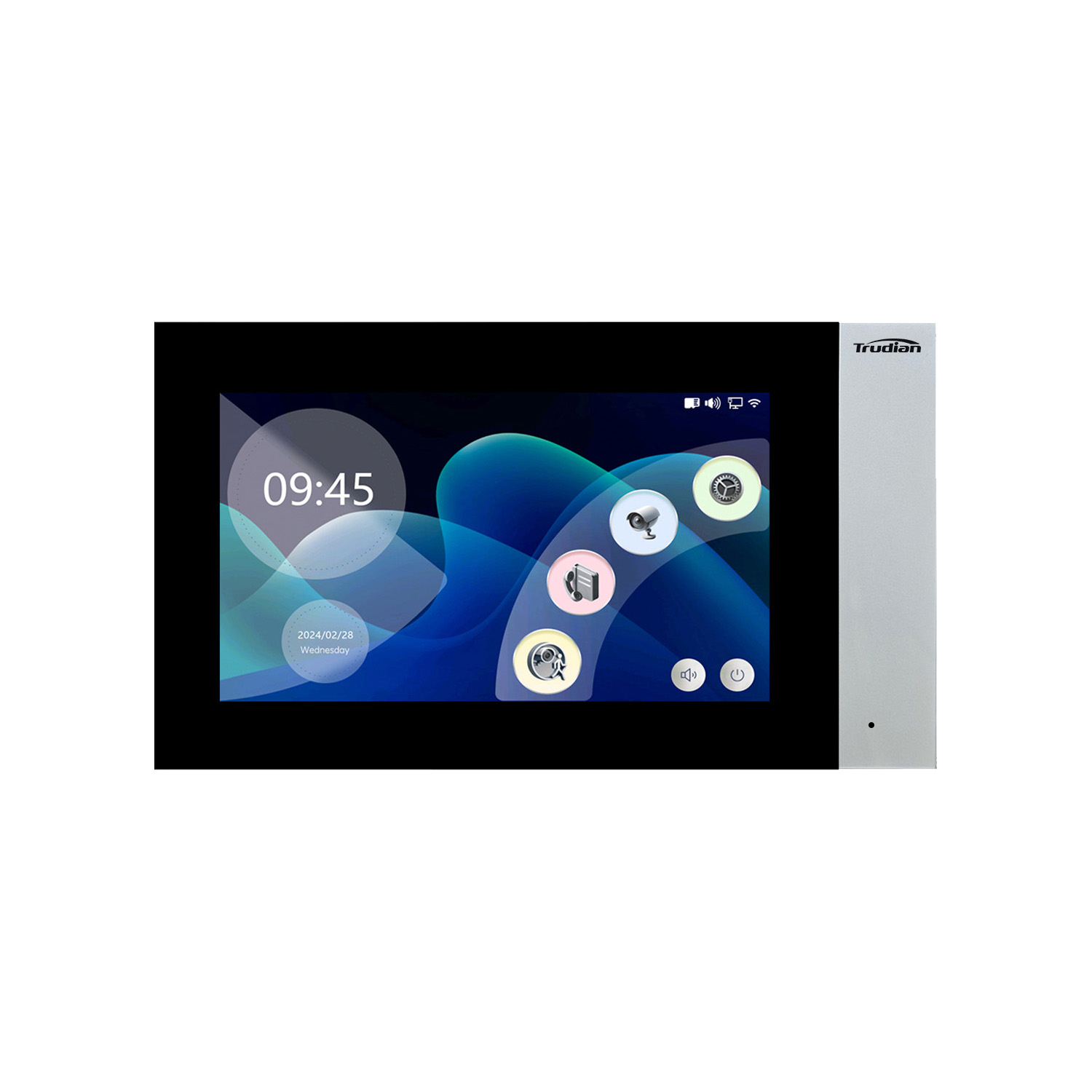

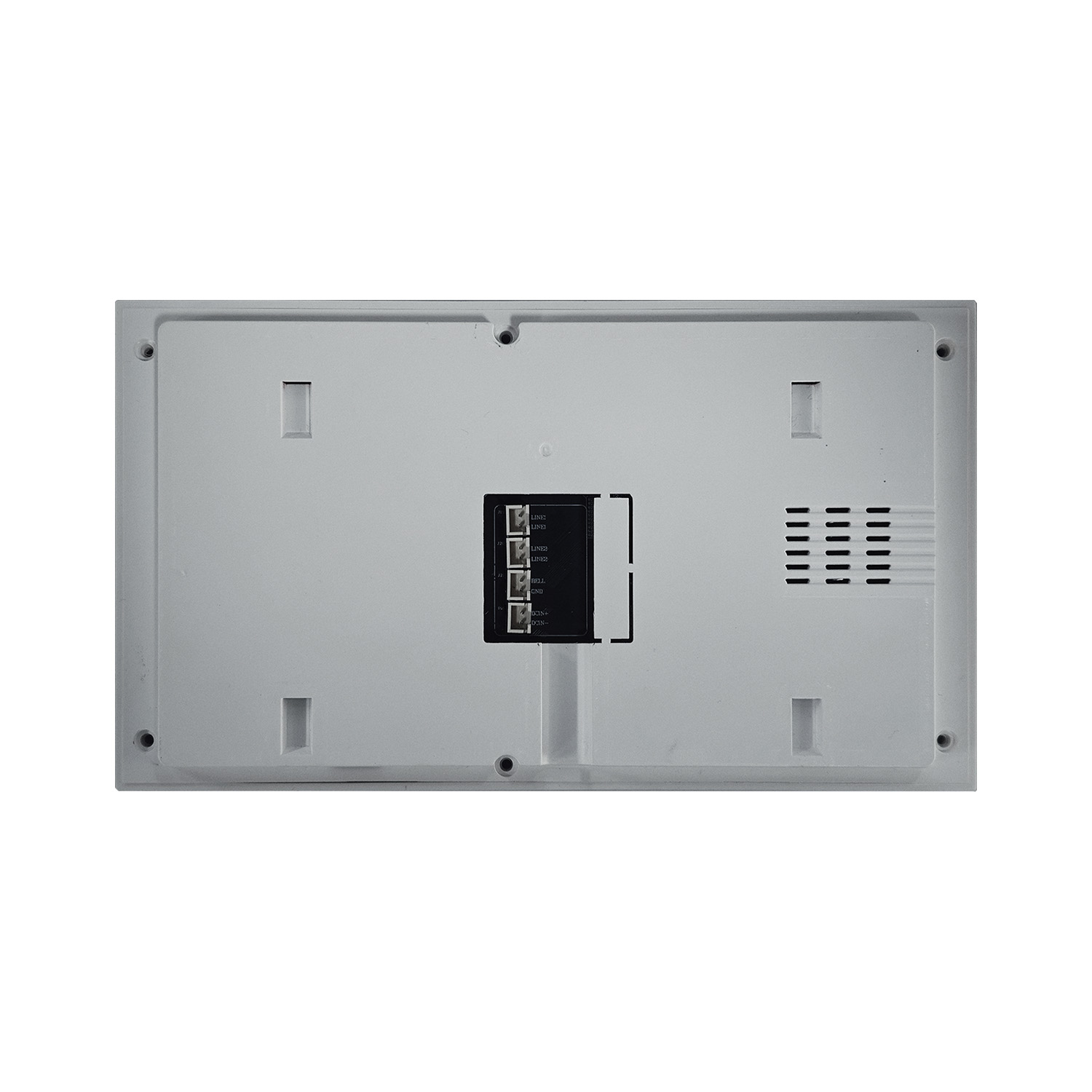

Indoor Monitor
Dimensions 219x124x20mm
Display 7" LCD touch screen
Screen Resolution 1024*600
OS Embedded Linux
Random Access Memory 128M
Flash 16M
Material engineering ABS plastic and tempered glass
Power Consumption static state <3W
working state <4W
Working Voltage DC 12~24V
Network 2.4G WiFi
Installation wall-mounted
Functions call, photo, video, monitor, unlock, visitor record, pedestrian detection, calendar display, adjust brightness & contrast & color & volumn, lock delay adjustment, multi-language OSD menu
External TF Card max 512GB storage, automatically save photo and video
Photo Storage Capacity 1000

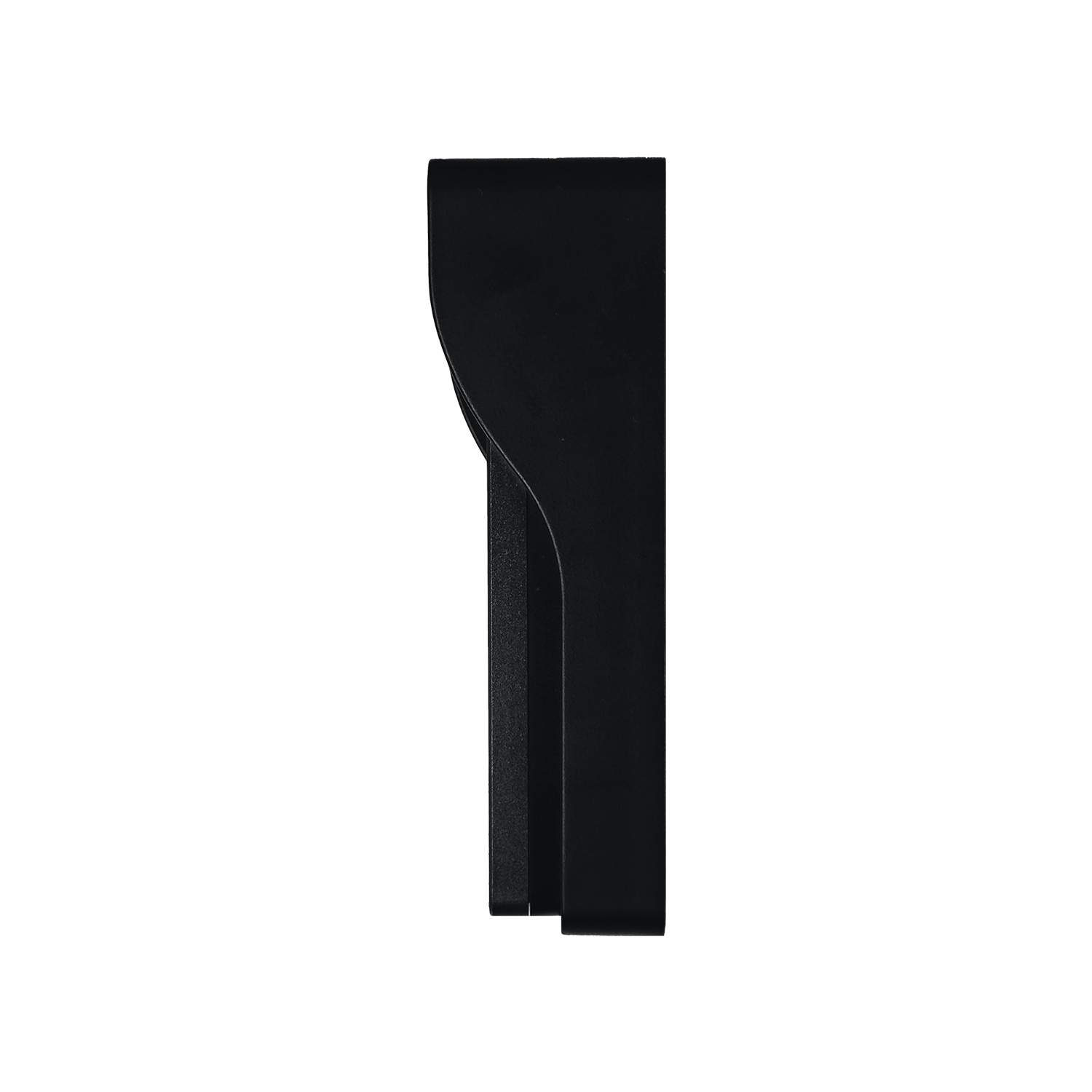

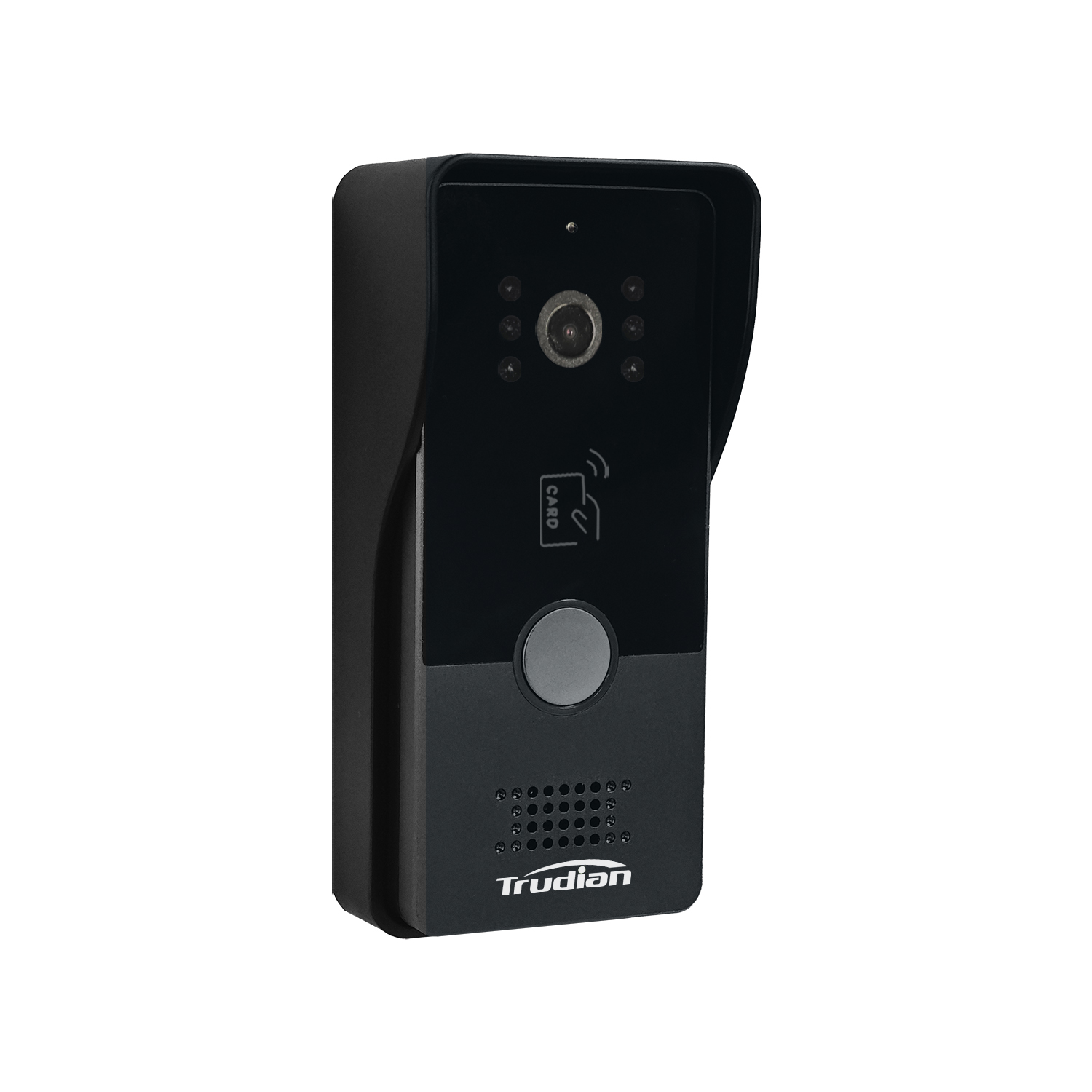

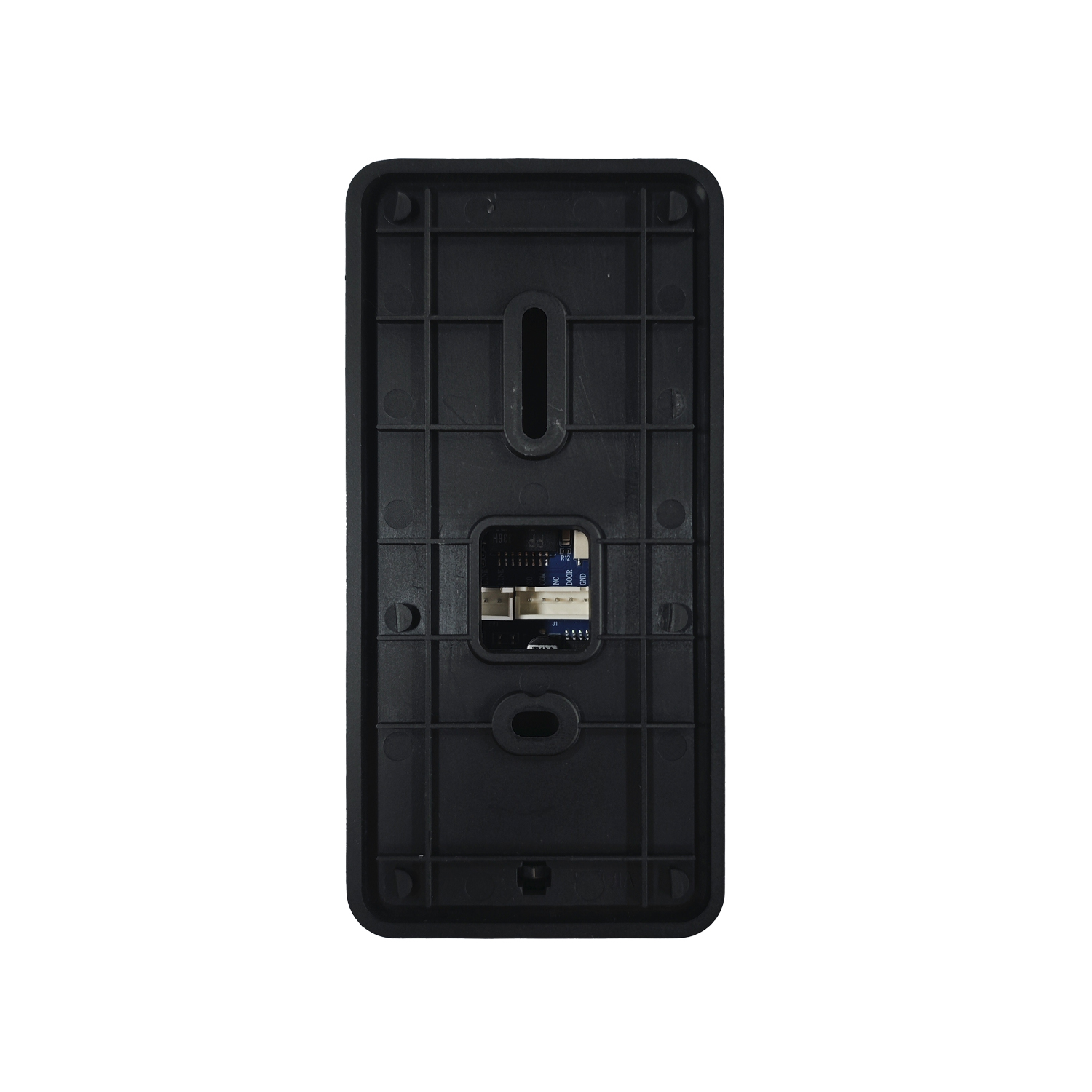

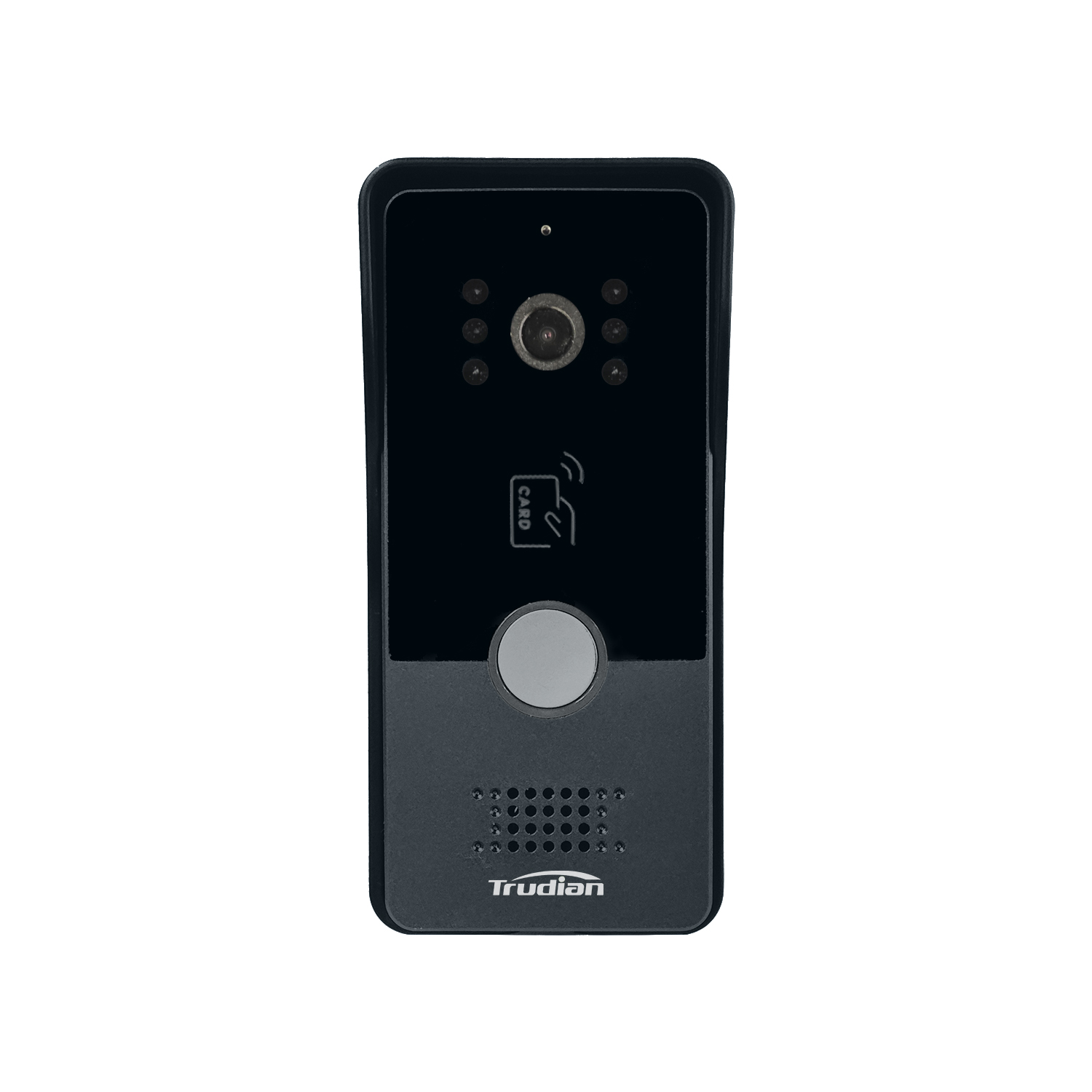

Outdoor Station
Dimensions 62.5*132.5*38.5mm
Material aluminum
Camera 2 million pixels/1080P
Horizontal View Angle 110°
Night Vision IR CUT switch, high color precision, black and white image
Fill Light 940nm (6 Infrared LED)
Door Lock Control connectable to magnetic lock and electronic lock, indoor monitor features lock delay time setting
IC Card Unlock support
Smart Motion Detection photo and video
Power Consumption static state <2W,
working state <4W
Installation wall-mounted
IP Rating IP65
