TD-RM04
- - Ultra-thin body, Appearance of engineering ABS plastic material;
- - Using the glue filling process, it can realize the waterproof function;
- - Unlock method: Swipe card(mifare);
Ultra-thin body, with built-in 86 box installation method, the visible thickness after installation is only 8MM;
Appearance of engineering ABS plastic material;
Using the glue filling process, it can realize the waterproof function;
Unlock method: Swipe card(mifare);
Support multiple advanced access control functions;
Can carry out local management, support management card device parameters;
Parameters
|
Working voltage |
DC12V |
|
Standby current |
40mA±20mA |
|
Working current |
60mA±20mA |
|
OS |
Embedded |
|
CPU |
ARM Cortex-M0 |
|
Memory |
8K Flash: 64K |
|
Reading distance |
0~4cm |
|
Working temperature |
-40℃~70℃ |
|
Working humidity |
10%~93% |
|
Appearance material |
engineering ABS plastic |
|
Installation method |
embedded with 86 boxes, the inner depth of 86 boxes is required to be ≥ 50MM |
|

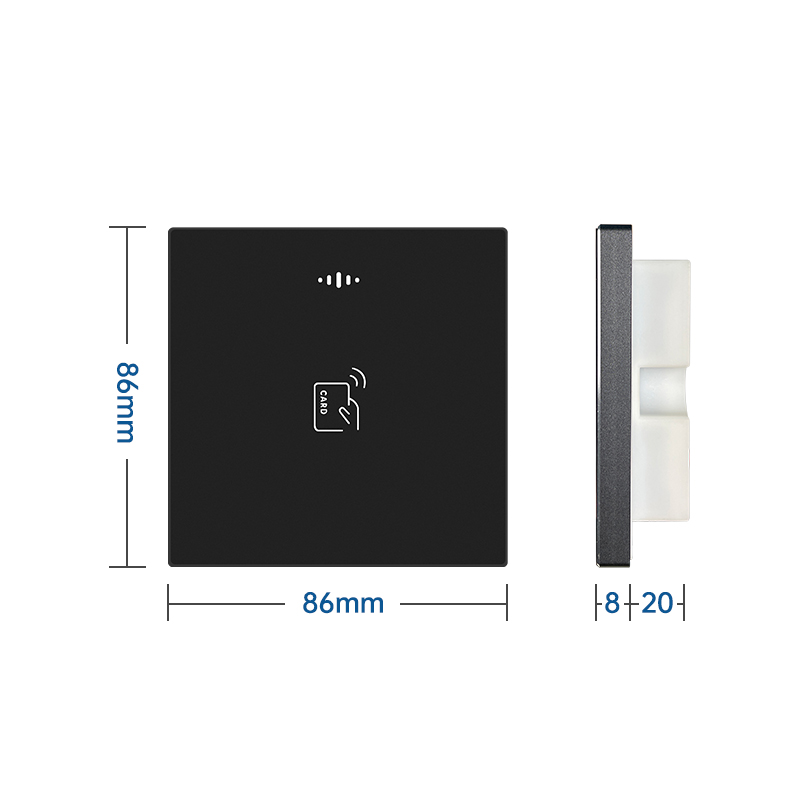

Appearance size |
86x86x28MM |
|
Bare size |
86*86*8MM |
| External Interface | |
|
Power supply |
12V power interface |
|
Wiegand |
1 set of Wiegand bus communication interface |
|
Wiegand communication mode |
1 channel WG26/WG34 data format switching interface |
|
Status synchronization |
1 channel and controller synchronization indicator/buzzer status signal interface |
