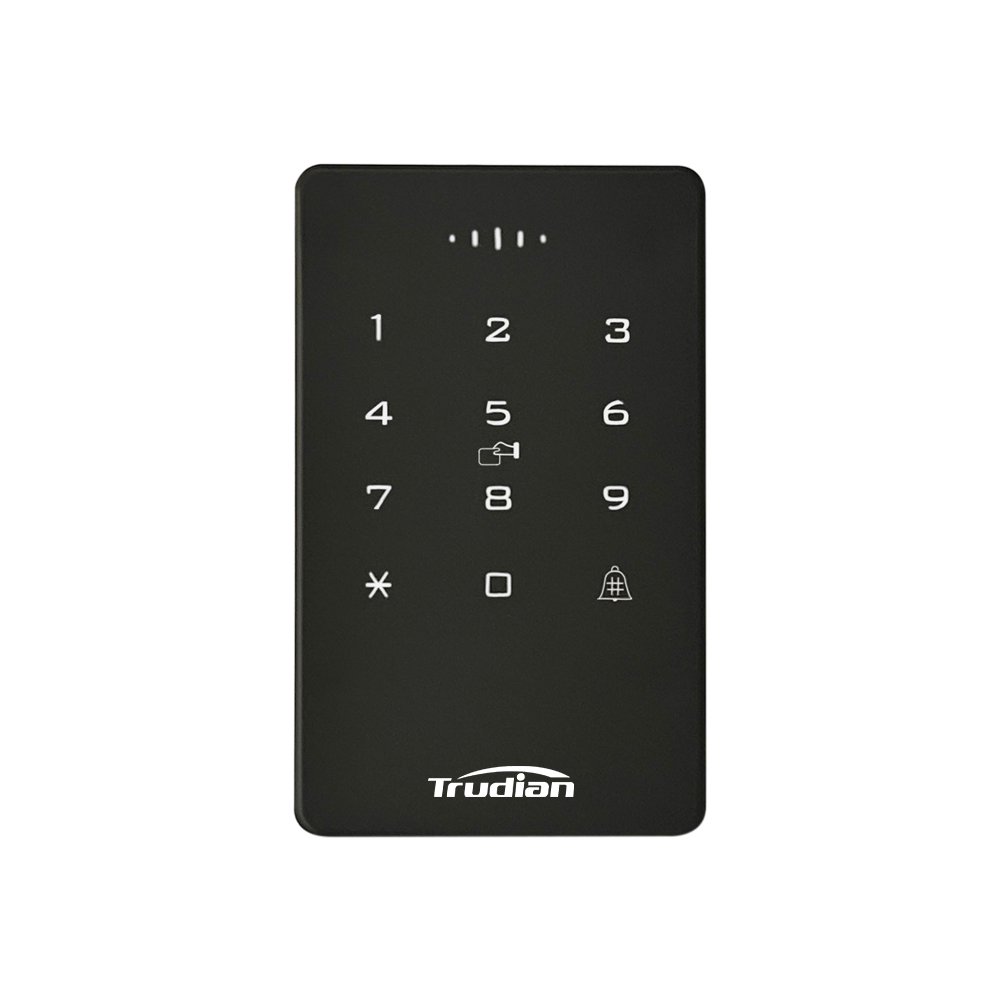

TD-12MAK
- - Standalone working mode;
- - Integrates unlocking methods: card, PIN, card+PIN, exit button;
- - Wall-mounted installation for easy setup.
Appearance: Made of engineering ABS plastic material.
Operation: Standalone mode.
Unlocking: PIN, card, PIN+card, and exit button.
Size: Compact at 118x72x16mm.
Power: DC12V, low standby and working current.
Capacity: 1000 PINs, 1000 cards, 1000 unlock records.
Installation: Wall-mounted design.
Specifications
| Working Mode | standalone |
| Unlocking Methods | PIN, card, PIN+card, exit button |
| Appearance Size | 118x72x16mm |
| Working Voltage | DC12V |
| Standby Current | 40mA±20mA |
| Working Current | 60mA±20mA |
| OS | Embedded system |
| CPU | ARM Cortex M0 |
| Memory | 8K |
| Flash | 64K |
| Reading Distance | 0~4cm |
| PIN Capacity | 1000 |
| Card Capacity | 1000 |
| PIN + Card Capacity | 1000 |
| Unlock Record Capacity | 1000 |
| Working Temperature | -40℃~70℃ |
| Working Humidity | 10%~93% |
| Appearance Material | ABS |
| Installation Method | wall-mounted |
|
External Interface |
|
| Power Supply | 12V power interface |
| Exit Button | 1 set of exit button signal detection input interface |
| Door Magnetic Sensor | 1 set of door magnetic sensor signal detection input interface |
| Relay Output | 1 set of relay common port, NO port and NC port |
| Doorbell | 1 set of Dingdong doorbell signal output interface |
| Data Backup | 1 set of data backup and record export interface |
| Wiegand | 1 set of Wiegand bus communication interface |
| Wiegand Communication Mode | 1 set of WG26/WG34 data format switching interface |
| Status Sync | 1 set of controller-synced indicator/buzzer status signal interface |
