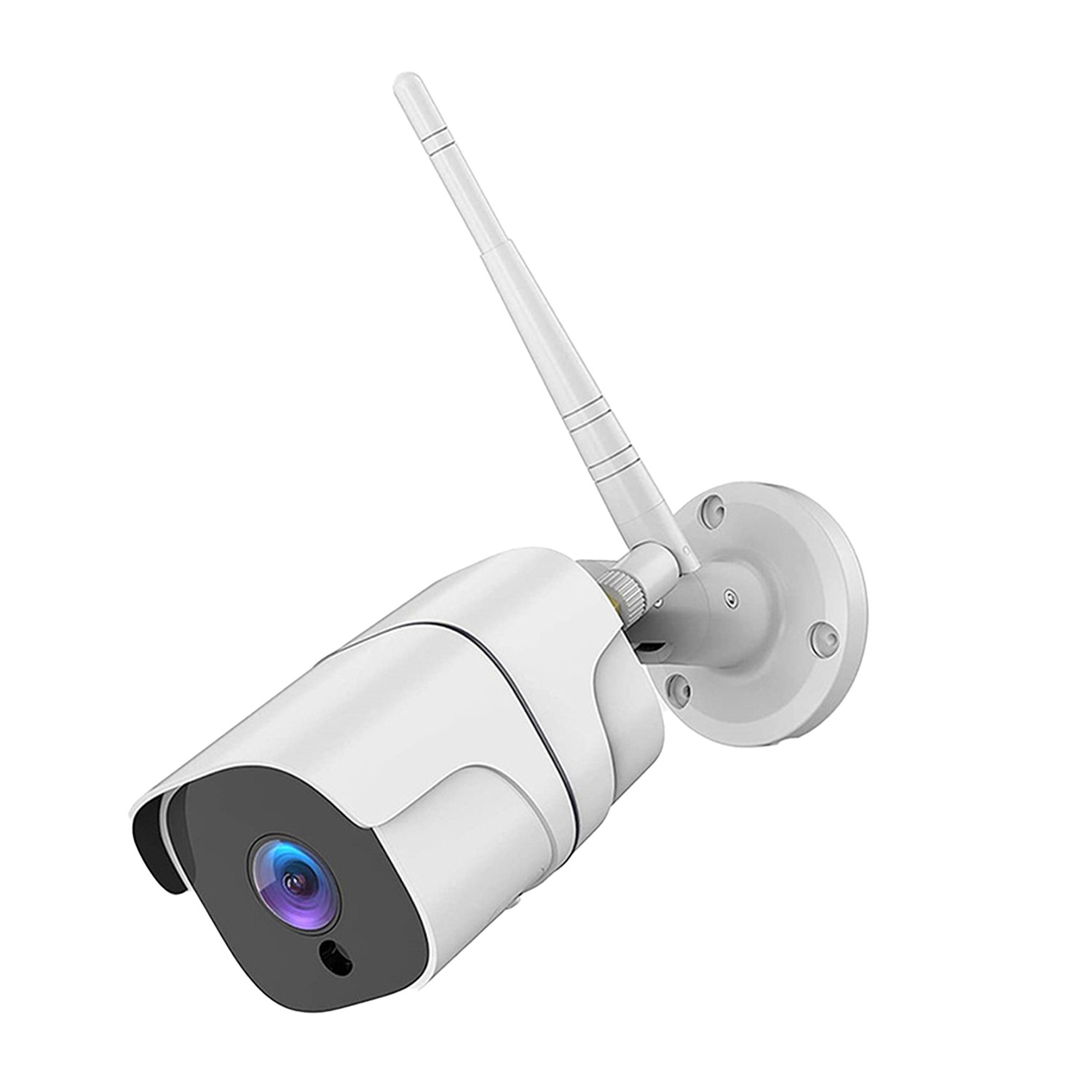

TD-K13WP
- - Material: Constructed from durable aluminum material, designed to withstand outdoor environments and provide long-lasting performance.
- - Video Resolution: Supports multiple video resolution options including 2MP as standard and an optional upgrade to 4MP, providing sharp video output.
- - Infrared Night Vision: Featuring 18 infrared LEDs, enables effective night vision capabilities for clear monitoring in low-light conditions.
- - Audio: Built-in microphone and speaker for two-way audio communication.
- - SD Card Storage: Supports a Micro SD card with maximum capacity of 128GB, providing ample space for video recordings.
- - Motion Detection: The built-in motion detection feature alerts users to any suspicious movement, supports alarm push notifications for real-time updates.
- - Mobile App: Compatible with the Tuya Smart App, enabling remote control and monitoring.
- - Smart Home Integration: Effortlessly integrates with Trudian’s video intercom system, offering enhanced convenience and security.
- - Weather Resistance: Rated IP66, making it suitable for outdoor use (dustproof and waterproof).
Specifications
| Appearance Design | |
| Size | 62*60*107mm |
| Weight | 0.35kg |
| Color | White |
| Material | Aluminum |
| IP Rating | IP66 |
| Certification | CE, FCC, RoHS |
| Rotation | Support |
| Image | |
| Chipset | GK7205+3335E |
| Sensor | 1/2.8’’ 3.0M Pixel Progressive Scan CMOS |
| Focal length | 3.6mm |
| Aperture | F1.6 |
| Min Illumination | 0.01Lux |
| Snapshot | Support |
| Video | |
| Image Compression | H.265 |
| Image Frame Rate | 15fps |
| Resolution | 2MP, 4MP (optional) |
| Stream | Dual streams |
| Video Streaming | 32Kbps ~ 3Mbps |
| Video Adjustment | 2D/3D DNR, Auto exposure, Auto WB, DOL-WDR, Sharpness-AE, ROI-AE, DRC |
| Flip Image | Flip and mirror |
| Infrared LED | 18pcs |
| Night Vision | Support |
| Timed Recording | Support |
| Audio | |
| Input / Output | Built-in Mic and Speaker, two-way audio |
| Audio Compression | G.711A |
| Speaker | 8Ω / 1W |
| Audio type: | 8K / 12K / 16K / 24K / 32K / 44.1K / 48K / 96K |
| Echo Cancellation | Support |
| SD Card Storage | |
| SD Card Type | Micro SD card |
| SD Card Capacity | Maximum 128 GB |
| Network | |
| Ethernet Interface | One 10/100Mbps, RJ45 LAN port |
| WiFi | Wireless Transmission |
| Wireless Standard | 2.4G, IEEE802.11 b/g/n |
| Frequency | 2.4GHz ~ 2.4835GHz |
| Antenna | External one Antenna 3dBi 2.4Ghz |
| Capacity of WiFi Wave | Max 150Mbps |
| Operation Modes | WiFi access, Ethernet cable |
| Wireless Security | WEP, WPA, WPA2 |
| Protocols | TCP/IP, UDP/IP, HTTP, SMTP, FTP, DHCP, DNS, UPNP, NTP |
| Wireless Connection | WiFi Smart Link |
| ONVIF Protocol | Support |
| PoE Protocol | Optional |
| System | |
| Max Users | Support 4 pepole view at same time |
| Updating | Remote network updating |
| Motion Detection | Support |
| Alarms Push | Support |
| Privacy Area | Support |
| Smart Home Integration | Support |
| Phone App | Tuya Smart App |
| Reset | Reset button is available |
| Cloud Storage | Optional |
| Amazon Alexa and Google Home Service | Optional |
| Power | |
| Power Supply | DC12V / 1A |
| Power Consumption | 6W (Max.) |
| Environment | |
| Operating Temperature | -10°C ~ 50°C |
| Operating Relative Humidity | 10% ~ 95%RH |
| Storage Temperature | -20°C ~ 60°C |
| Storage Relative Humidity | 0% ~ 90% |
