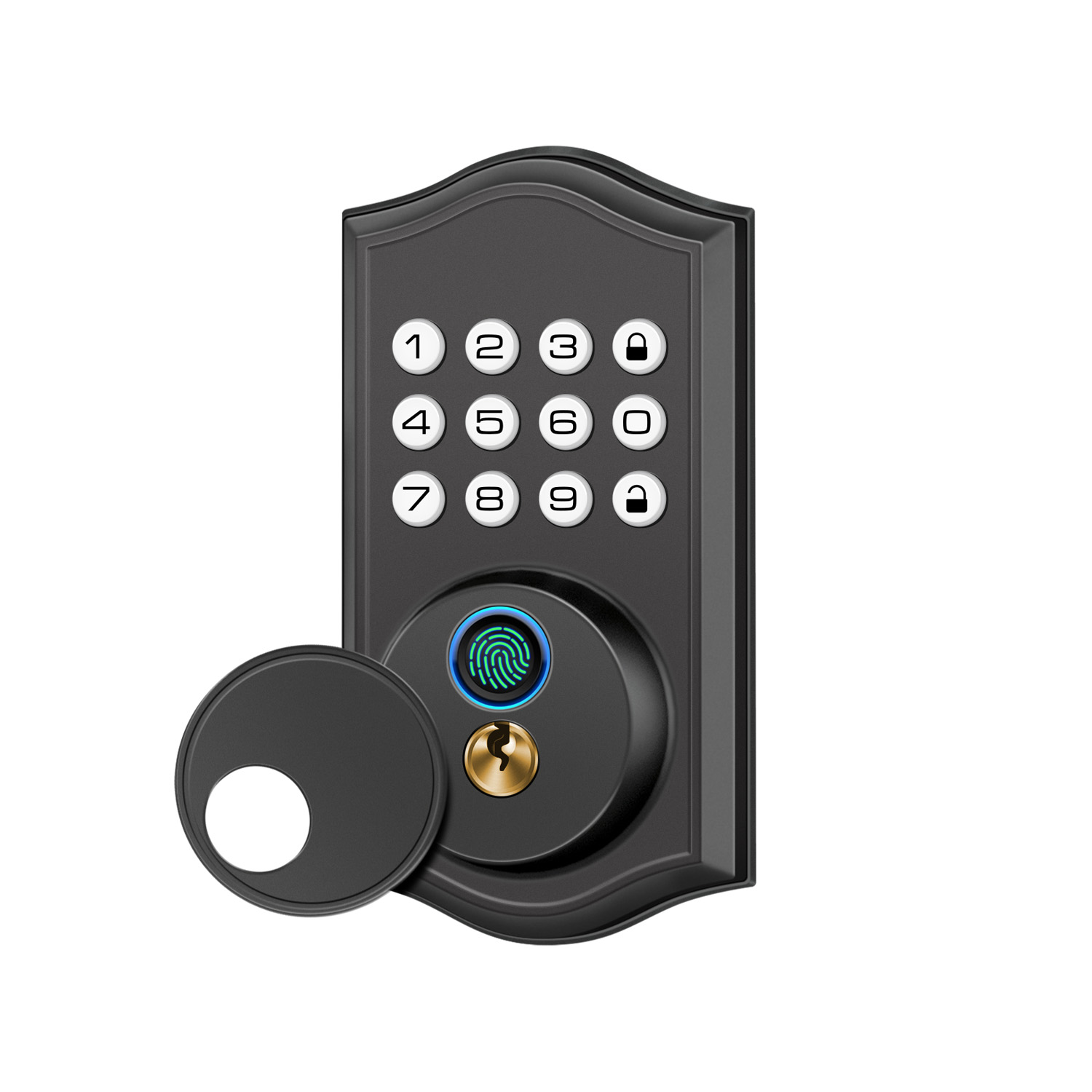

TD-K1-B
- - Multiple Unlock Methods: Offers fingerprint, password, and physical key options for unlocking.
- - Durable Build: Made from aluminum alloy, ensuring durability and resistance to wear.
- - Fingerprint & Password Capacity: Supports up to 50 fingerprints, 100 common passwords, and 100 one-time passwords.
- - High-Precision Fingerprint Sensor: Uses a semiconductor sensor with 360° identification for quick recognition within ≤1 second.
- - Emergency Power Supply: Equipped with a USB power port for emergency power in case of battery failure.
- - Anti-Static Protection: Offers protection against static electricity to ensure consistent performance.
Specifications
| Unlock Method | Fingerprint, password, key |
| Lock Dimension |
Front: 137×73×91mm Back: 149×73×49mm |
| Weight | 0.7kg |
| Color | Black |
| Material | Aluminum alloy |
| Lock Mortise Size | 111×53×25mm |
| Fingerprint & Password Capacity |
Fingerprint: 50 sets Common password: 100 sets One-time password: 100 sets |
| Fingerprint Sensor | Semiconductor |
| Fingerprint Contrast time | ≦1s |
| Fingerprint Identification Angle | 360° |
| False Rejection Rate | ≦1% |
| False Acceptance Rate | ≦0.001% |
| Battery | 4pcs AA batteries |
| Operating Voltage | DC6V |
| Emergency Power | USB port, DC5V |
| Static Current | ≦50uA |
| Dynamic Current | ≦200mA |
| Working Temperature | -25℃~85℃ |
| Working Relative Humidity | 20%~90% |
| Unlock Time | ≦1s |
| Double-Locking | Support |
| Anti-Static | Support |
