TD-D3R36
- - Large Screen Display: Features a 7" LCD screen with touch button control.
- - Advanced Features: Supports video call, monitoring, and remote unlocking functions.
- - Secure Lock Control: Offers compatibility with magnetic locks and electric bolt locks.
- - Night Vision: Infrared LED fill light provides clear night view.
- - Waterproof: IP65 rating, ensuring perfect water and weather proof.
Specifications
| Whole Unit | |
| Adapter |
input: AC100-240V 50/60Hz output: DC15V 2A |
| Distance (Between Indoor Monitor and Outdoor Station) |
0~50m (RVV4*0.3mm², 15V voltage) 0~70m (RVV4*0.5mm², 15V voltage) |
| Distance (Between Outdoor Station and Door Lock) | 0~30m (RVV2*0.5mm²) |
| Wiring | 4-wire Cable |
| Working Temperature | -20°C~70°C |
| Working Relative Humidity | 10%~70% |
| Call Duration | 2 minutes |
| 2-Way Audio | support |

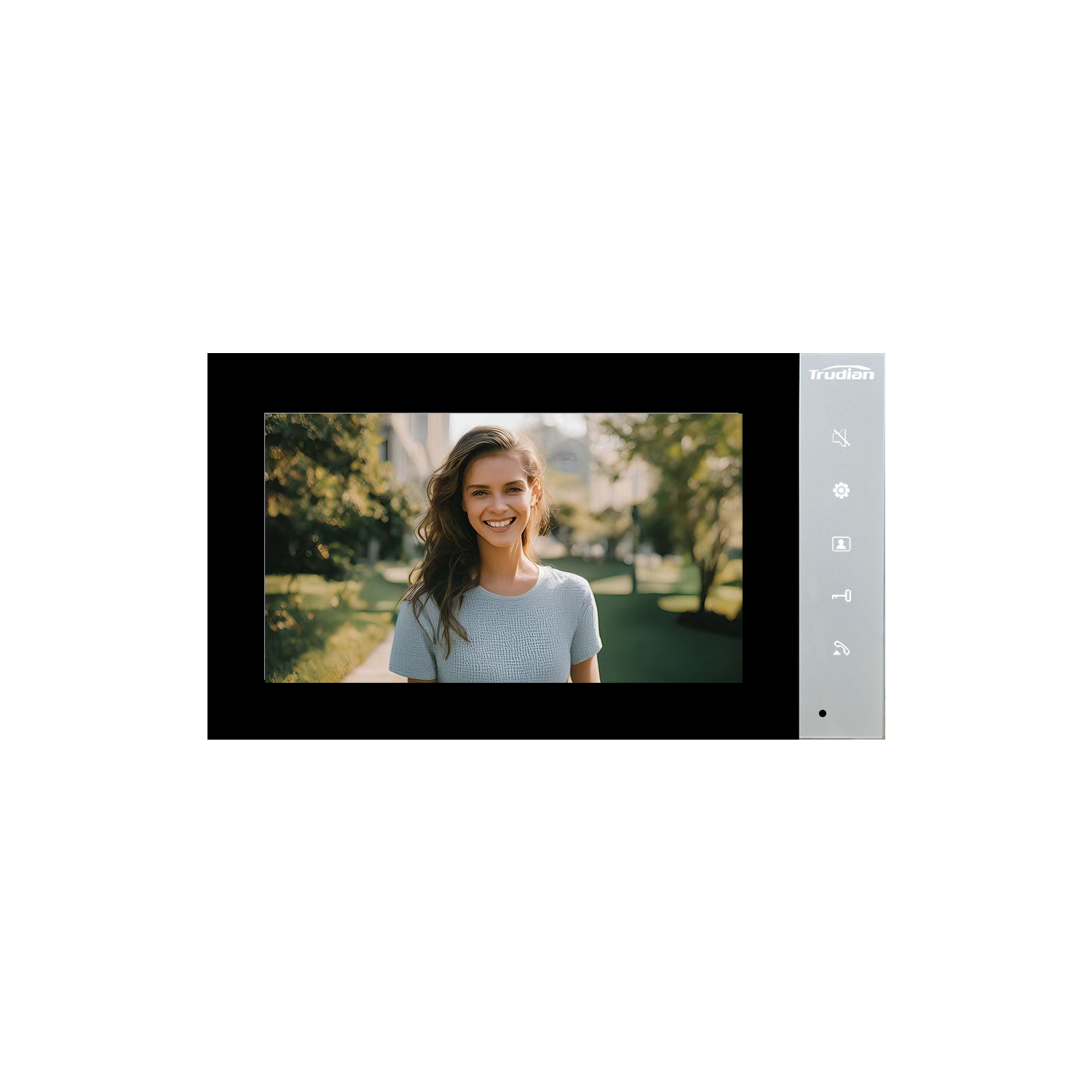

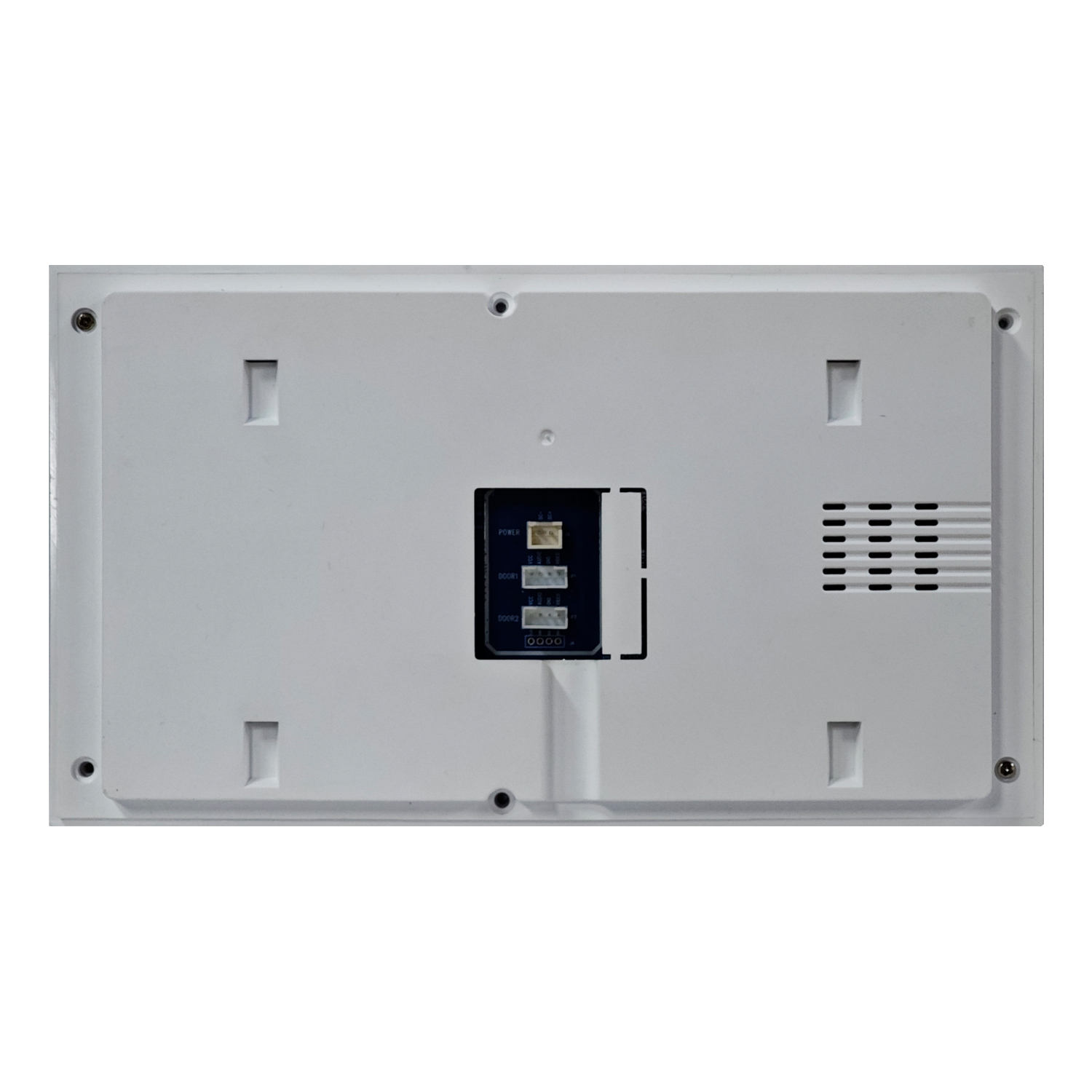

| Indoor Monitor | |
| Dimensions | 219x124x20mm |
| Display | 7" LCD screen, touch buttons control |
| Screen Resolution | 800*480 |
| Material | engineering ABS plastic and tempered glass |
| Power Consumption |
static state <0.7W working state <4W |
| Working Voltage | DC 12~15V |
| Installation | wall-mounted |
| Functions | video call, monitoring, door unlocking, no disturbance mode, ringtone selection, color & brightness & contrast & volume adjustment |

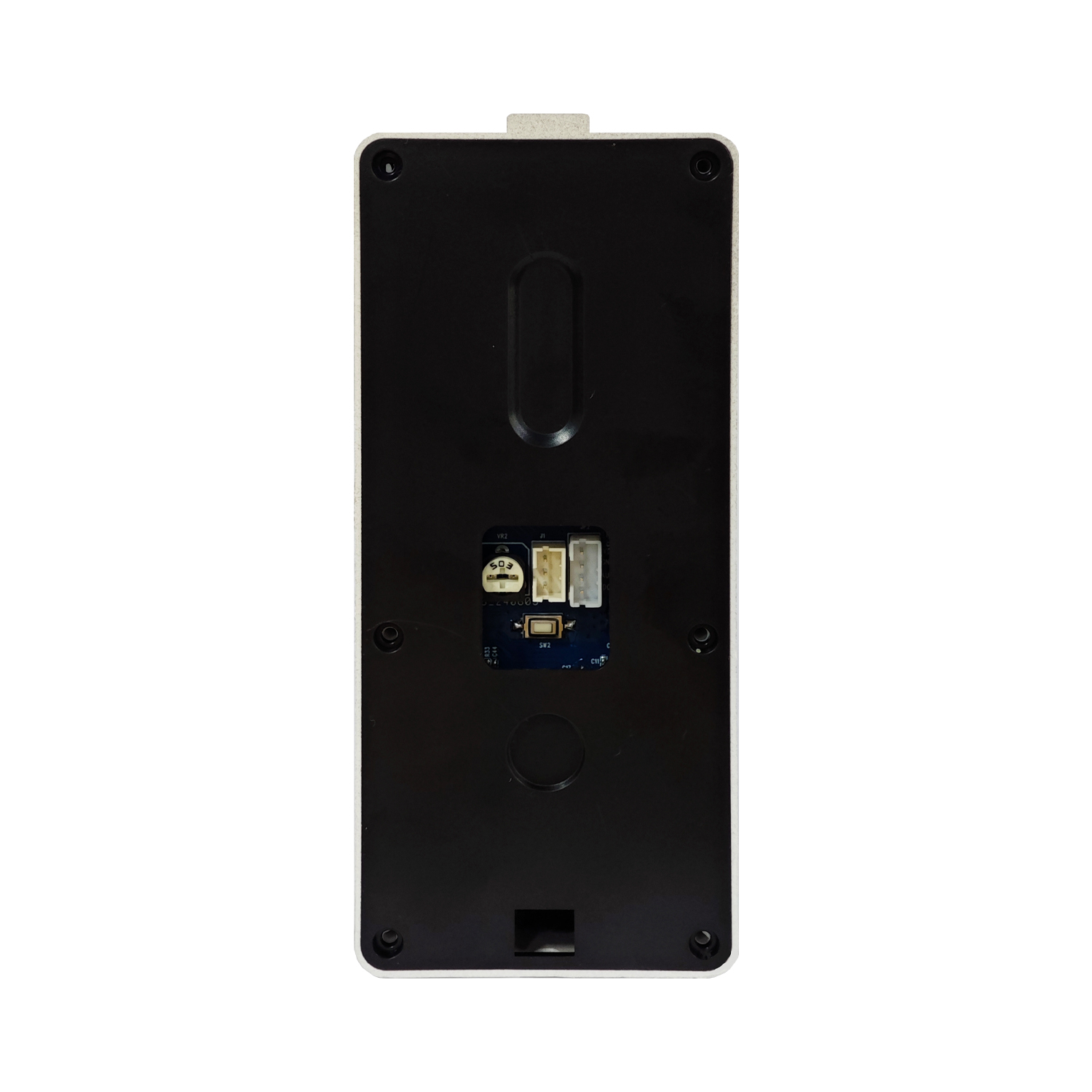

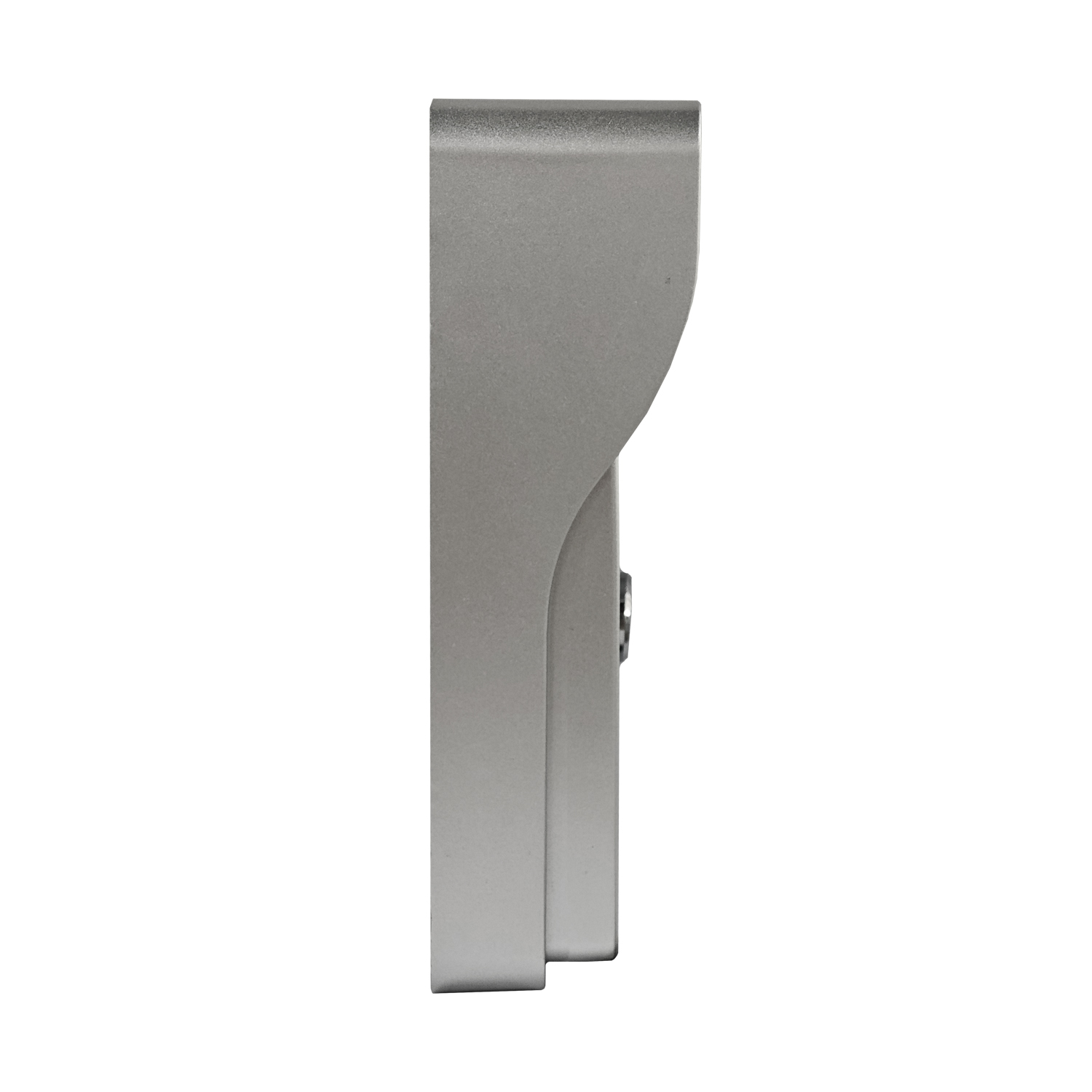

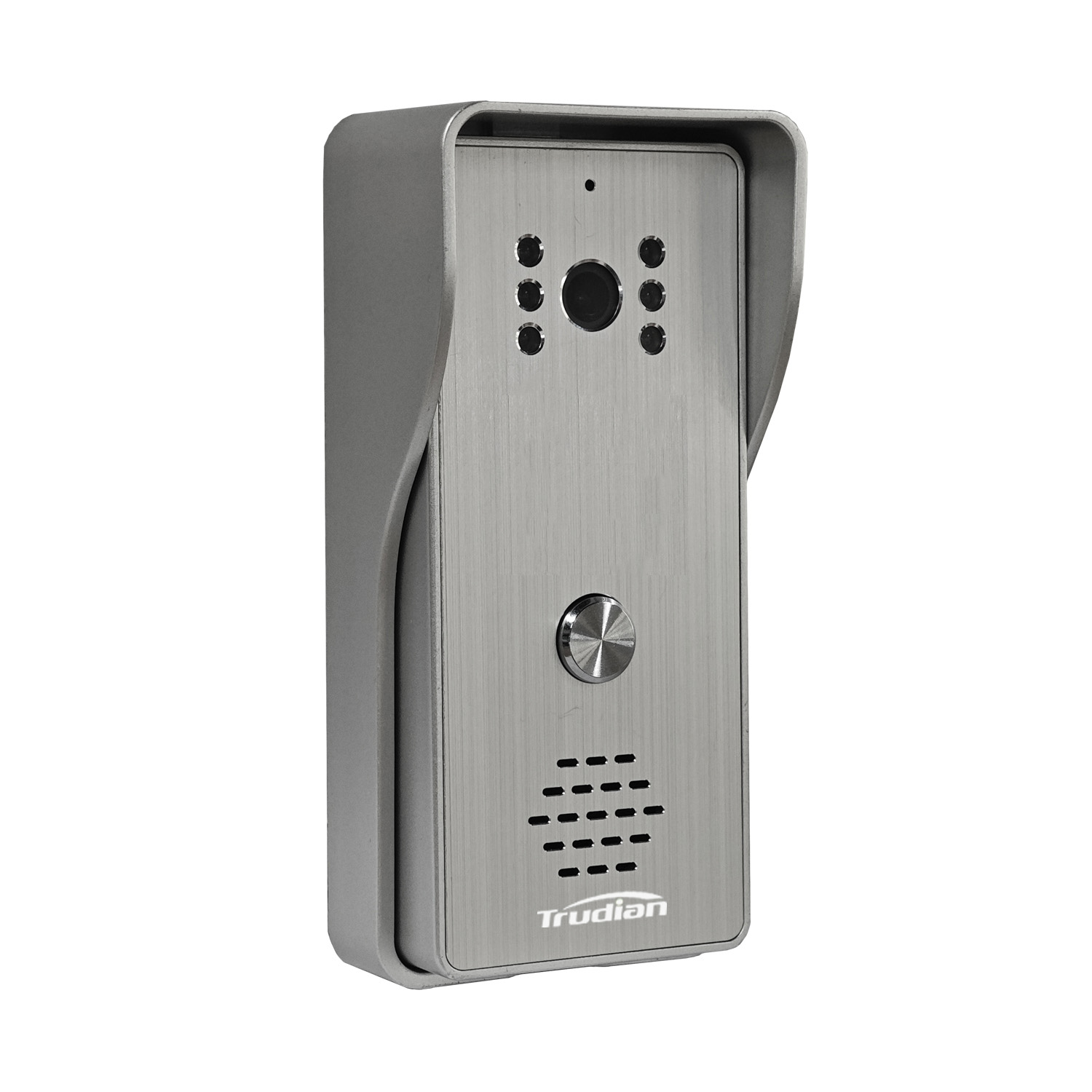

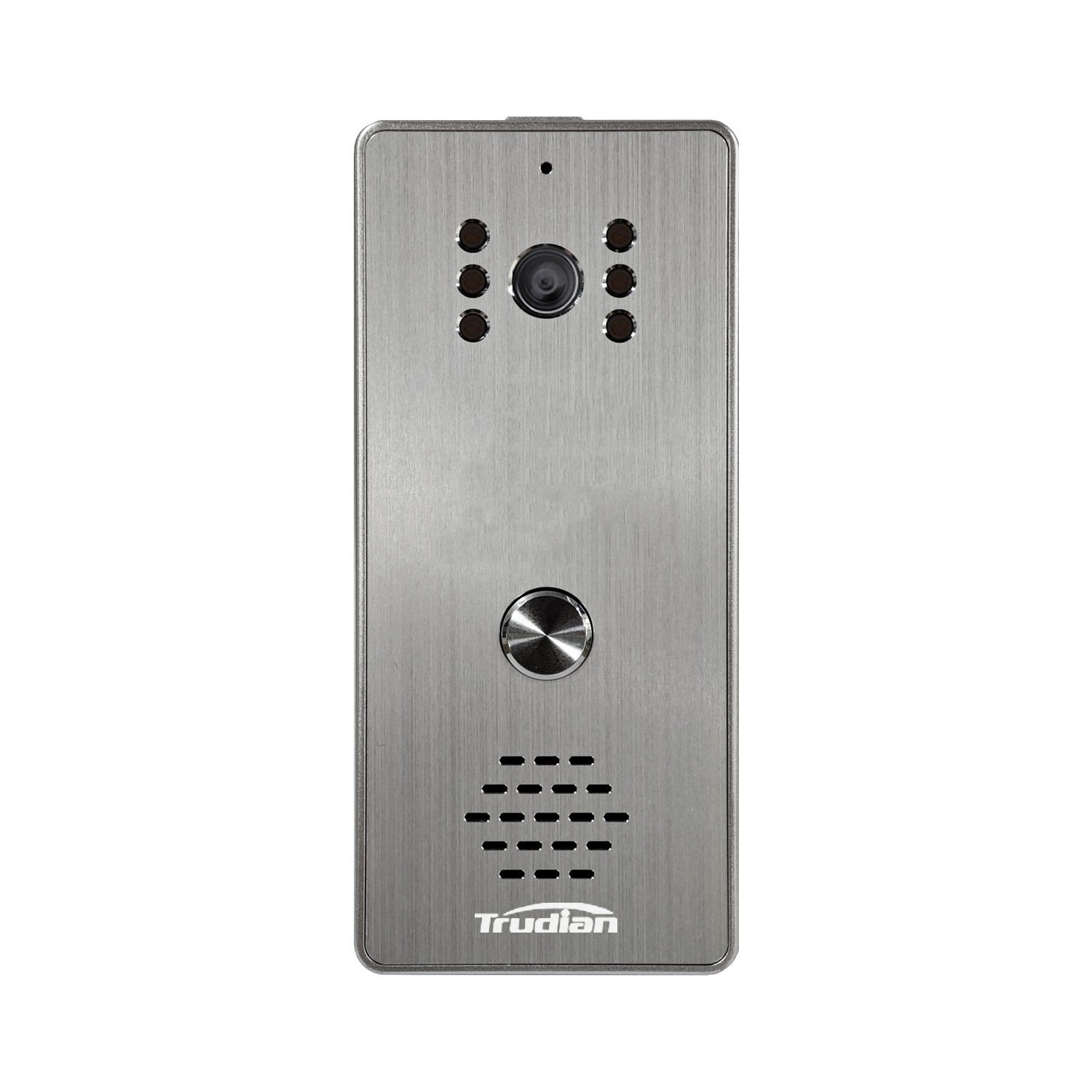

| Outdoor Station | |
| Dimensions | 62x132.5x39mm |
| Material | engineering ABS plastic and brushed aluminum sheet |
| Camera | 700P |
| Horizontal View Angle | 75° |
| Night Vision | high color precision, black and white image |
| Fill Light | 940nm (6 Infrared LED) |
| Door Lock Control | output switch signal |
| Power Consumption |
static state <0.3W, working state <1W |
| Installation | wall-mounted |
| IP Rating | IP65 |
