  • - Ultra-thin body, appearance of engineering ABS plastic material;
  • - Multiple working modes: TCP/IP networking, standalone;
  • - Integrates a variety of unlocking methods: card, management center, exit button;
Share to

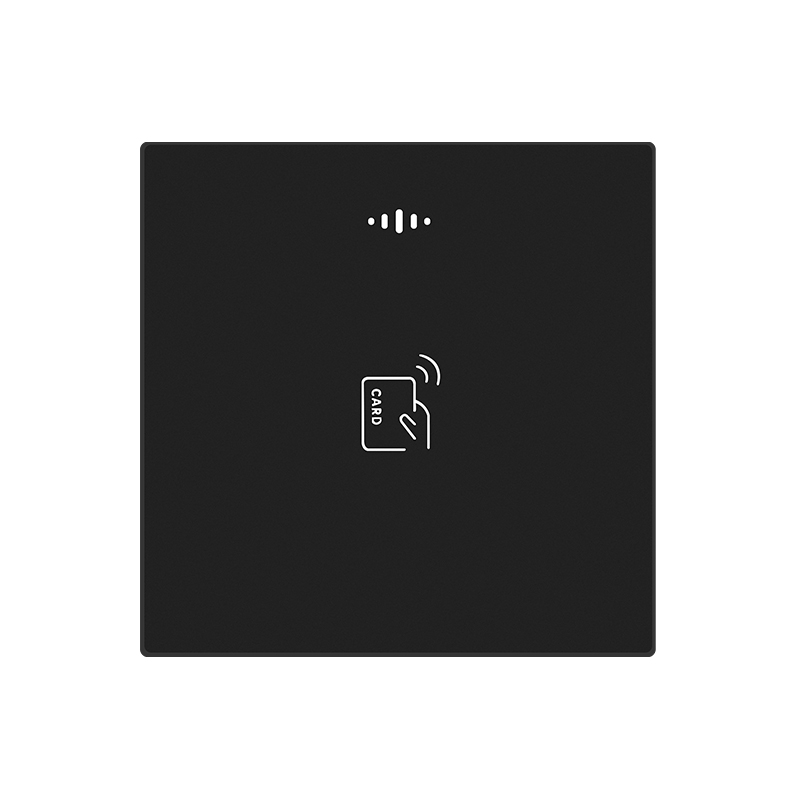

Appearance: Engineering ABS plastic material;

Modes: TCP/IP networking and standalone.

Unlocking: Card, management center, and exit button options.

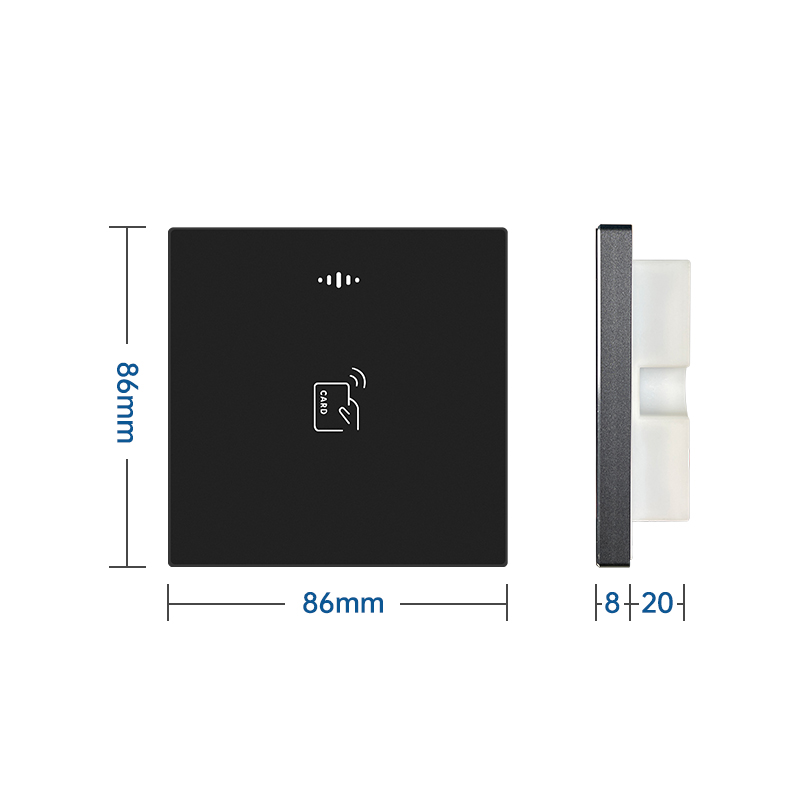

Size: Compact design at 86x86x28mm.

Power: DC12V, with low standby and working current.

Capacity: Up to 1000 card entries and 1000 unlock records.

Installation: Embedded with 86-style electrical box.


Working Modes TCP/IP networking, standalone
Unlocking Methods card, management center, exit button
Appearance Size 86x86x28mm
Bare Size 86x86x8mm
Working Voltage DC12V
Standby Current 110mA±20mA
Working Current 150mA±50mA
OS Embedded system
CPU ARM Cortex M3
Memory 20K
Flash 128K+8M
Reading Distance 0~4cm
Card Capacity 1000
Unlock Record Capacity 1000
Working Temperature -40~70
Working Humidity 10%~93%
Appearance Material ABS
Installation Method embedded with 86-style electrical box, the inner depth of 86-style electrical box is required to be ≥ 50MM
External Interface
Power Supply 12V power interface
Network 1 set of RJ45 10M/100M auto-sensing Ethernet port
485 1 set of 485 bus communication interface
Exit Button 1 set of exit button signal detection input interface
Door Magnetic Sensor 1 set of door magnetic sensor signal detection input interface
Unlock 1 set of common port, NO port and NC port
