TD-MIS308P-2G4F

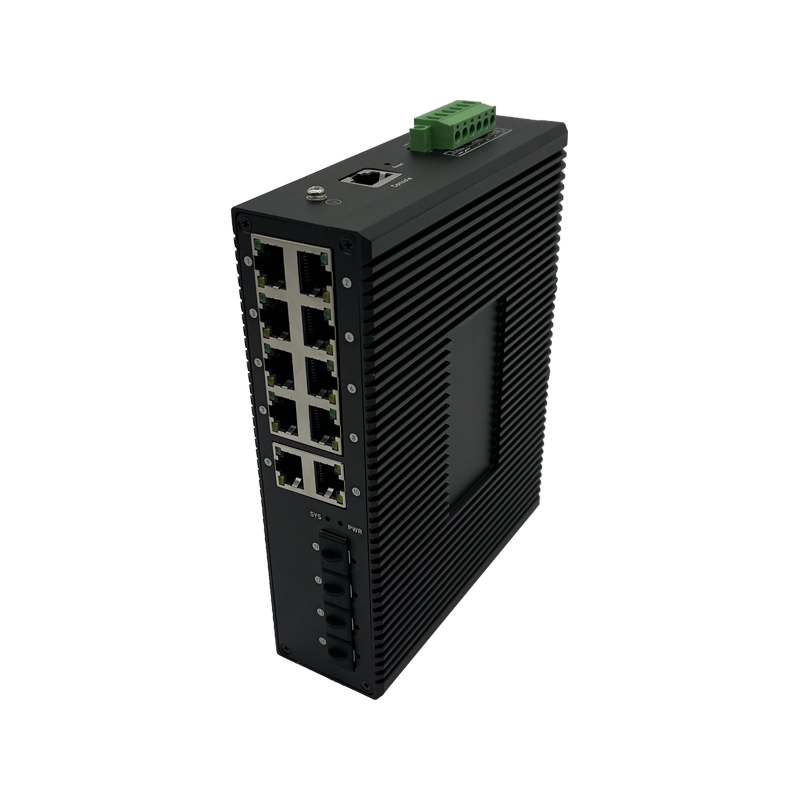

- - TD-MIS308P-2G4F series full Gigabit Layer 2 network management PoE switch, with 10 Gigabit Ethernet ports + 4 Gigabit uplink SFP optical port slots, of which 1-8 ports support IEEE 802.3af/at standard PoE power supply, Single port PoE power up to 30W. As a PoE power supply device, it can automatically detect and identify standard powered devices and supply power to them through network cables. It can supply power to POE terminal equipment such as industrial wireless AP, network camera, industrial control IP phone, PLC module, industrial sensor, etc. through the network cable, to meet the industrial networking environment that requires high-density PoE power supply, suitable for intelligent transportation, rail transit, electric power Establish a cost-effective, stable and reliable communication network in industrial scenarios such as industry, mining, petroleum, shipping, metallurgy and green energy construction.
Product Description
TD-MIS308P-2G4F series full Gigabit Layer 2 network management PoE switch, with 10 Gigabit Ethernet ports + 4 Gigabit uplink SFP optical port slots, of which 1-8 ports support IEEE 802.3af/at standard PoE power supply, Single port PoE power up to 30W. As a PoE power supply device, it can automatically detect and identify standard powered devices and supply power to them through network cables. It can supply power to POE terminal equipment such as industrial wireless AP, network camera, industrial control IP phone, PLC module, industrial sensor, etc. through the network cable, to meet the industrial networking environment that requires high-density PoE power supply, suitable for intelligent transportation, rail transit, electric power Establish a cost-effective, stable and reliable communication network in industrial scenarios such as industry, mining, petroleum, shipping, metallurgy and green energy construction.
TD-MIS308P-2G4F has L2+ network management function, supports IPV4 static route forwarding, supports complete security protection mechanism, perfect ACL/QoS policy and rich VLAN functions, and is easy to manage and maintain. Support multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and ERPS (<20ms) ring network protocol to improve link backup and network reliability. When a one-way network fails, communication can be quickly restored to ensure important Transmission of uninterrupted communication. According to actual application needs, through Web, CLI, SNMP, Telnet and other network management methods, perform PoE power supply management, port flow control, VLAN division, QoS, LACP, IGMP and DHCP and other application service configurations. The switches are all made of aluminum alloy profiles, with super heat dissipation performance, which ensures that they can run stably for a long time in outdoor high-temperature environments. The service ports all support 6KV electrostatic lightning protection, redundant dual power input interfaces, and Din-rail installation. The best choice for large-scale network and multi-service network access.
Product Features
1.Single-port PoE power up to 30W, af/at adaptive, widely compatible with various network terminals;
2.Photoelectric hybrid uplink port, flexible adaptation to network cable and optical fiber connection, adaptation to various networking cascades and expansions, making networking easier;
3.Full gigabit high-speed transmission, high-bandwidth transmission is stable and guaranteed, supports speed and flow control of each port, realizes long-distance transmission of 10M/250 meters, easily solves long-distance communication and power supply problems, and meets different user needs;
4.Industrial-grade high-bandwidth switching chip, high backplane, large cache, reducing network congestion;
5.Support IEEE802.3X full-duplex intelligent flow control, large stream high-definition transmission without lag;
6.Support MAC address automatic learning and updating, support port automatic flip (Auto MDI/MDI-X) function;
7.The service port supports 6KV anti-surge (lightning protection) protection, PoE short-circuit and overload protection, making it safer and more secure to use;
8.Aluminum alloy profile metal shell, strong heat dissipation, shielding interference, strong, rust-proof and more durable;
9.Dual DC redundant power supply interface, DC48-57V wide voltage input, meeting the wide voltage requirements of industrial environments;
10.DIN35 guide rail installation, IP40 protection level, wide temperature design from -40°C to +75°C, more stable and reliable application in harsh environments;
11.Low power consumption, fanless and silent design, easy to install and use.
Software features
Strong functions
1.Support 128 entries IPV4 static routing, support ARP protocol, maximum 1024 entries.
2.Flexible port bandwidth and traffic configuration, optical port DDMI digital diagnosis function, easy to realize fine network management.
3.Support IEEE 802.1Q VLAN, support protocol VLAN, support QinQ VLAN, users can flexibly divide VLAN according to needs.
4.Support QoS, support port-based, 802.1P-based and DSCP-based three priority modes and four queue scheduling algorithms: Equ, SP, WRR, and SP+WRR.
5.Support ACL, realize the filtering of data packets by configuring matching rules, processing operations and time permissions, and provide flexible security access control strategies.
6.Support IGMP V1/V2 multicast protocol, support IGMP SnoopingV1/V2/V3, to meet multi-terminal high-definition video surveillance and video conference access requirements.
7.Support STP/RSTP/MSTP production tree protocol and ERPS fast ring network protocol to eliminate layer 2 loops and realize link backup.
8.Support static aggregation and dynamic aggregation (LACP), effectively increase link bandwidth, realize load balancing, link backup, and improve link reliability.
Complete Security Features
1.Support WEB interface user authentication.
2.Support CPU protection to prevent large data flow from attacking the switch itself.
3.Support 802.1x authentication, remote RADIUS, TACACS+ authentication.
4.Hardware supports IP ACL, MAC ACL, ACL port filtering function, MAC address binding, port-based IP+MAC+Vlan+port multi-binding function.
5.Support DHCP Snoopingv1/v2/v3 function, port isolation function, port broadcast storm suppression function.
Convenient operation and maintenance management
1.Support various management and maintenance methods such as Web network management, CLI command line (Console, Telnet), SNMP (V1/V2c/V3).
2.Support HTTP/HTTPS, SSH and other encryption methods, making management more secure.
3.Support HTTP/TFTP to realize firmware update/upgrade, support configuration file upload/download, and restore system configuration with one key.
4.Support RMON, system log, and port traffic statistics, which is convenient for network optimization and transformation.
5.Support LLDP, which is convenient for the network management system to query and judge the communication status of the link.
6.Support CPU monitoring, memory monitoring, Ping detection, cable detection.
|
Model |
TD-MIS308GP-2G4F |
||
|
Port Characteristics |
|||
|
fixed port |
Downlink Port |
8 10/100/1000Base-T RJ45 network ports |
|
|
Uplink Port |
2 10/100/1000Base-T RJ45 network ports + 4 100/1000M SFP optical port slots |
||
|
PoE Port |
1-8 ports support af/at standard PoE power supply, transmission distance 100-250 meters |
||
|
Network port characteristics |
1-8/1-10 ports 10/100/1000M self-adaptive, full/half duplex MDI/MDI-X self-adaptive |
||
|
Twisted pair transmission |
10BASE-T：Cat3,4,5 UTP(≤250 meter) 100BASE-TX：Cat5 or later UTP(≤100 meter) 1000BASE-T：Cat5e or later UTP(≤100 meter) |
||
|
Optical port characteristics |
Gigabit SFP optical fiber interface, the default is not equipped with optical modules, which need to be purchased separately (optional order can be single-mode/multi-mode, single-fiber/dual-fiber optical modules, LC/SC) |
||
|
fiber optic cable |
Multi-mode ：850nm 0～550M ， 50μm/125μm&62.5μm/125μm Single model ：1310nm 0～40KM ， 1550nm 0～120KM . 9.5μm/125μm |
||
|
Chip parameters |
|||
|
Network management type |
L2+ network management |
||
|
Network protocol |
IEEE802.3 10BASE-T；IEEE802.3i 10Base-T IEEE802.3u 100Base-TX IEEE802.3x Flow Control IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree protocol IEEE 802.1w Rapid Spanning Tree protocol IEEE 802.1s Multiple Spanning Tree protocol IEEE 802.1p Class of service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af DTE Power via MDI IEEE 802.3at DTE Power via MDI |
||
|
forwarding mode |
Store-and-forward (full wire speed) |
||
|
CPU |
500MHz |
||
|
DRAM |
1Gbits |
||
|
FLASH |
128Mbits |
||
|
Backplane Bandwidth |
28Gbps (non-blocking) |
||
|
packet forwarding rate@64byte |
20.83Mpps |
||
|
MAC address table |
8K |
||
|
packet forwarding cache |
4.1Mbits |
||
|
jumbo frame |
10Kbytes |
||
|
indicator light |
Power indicator: PWR (green); System running indicator: SYS (green); Network indicator: Link/Act (green); PoE indicator: PoE (yellow); Optical port indicator: SFP (green). |
||
|
One key reset switch |
1, long press for 6 seconds and release to restore factory settings |
||
|
MTBF |
500,000 hours |
||
|
POE and Power Characteristics |
|||
|
POE port |
1-8 ports support IEEE802.3af/at standard POE power supply |
||
|
PoE management |
Support PoE on/off and restart for each port, PoE working status display for each port, and real-time PoE power display |
||
|
power pin |
Default 1/2(+), 3/6(-) 4-core power supply |
||
|
Single port maximum PoE power |
30W, standard IEEE802.3af/at |
||
|
Input voltage |
DC48-57V |
||
|
Overall power consumption |
Standby power consumption: <13W; full load power consumption: <120W@af, 240W@at |
||
|
Supporting power supply |
The power supply is not provided by default and needs to be purchased separately. DC48V/120W or DC48V/240W is recommended |
||
|
Physical Specifications |
|||
|
Cooling method |
Natural heat dissipation without fan |
||
|
Working temperature/humidity |
-40～+75°C; 5%～90% RH non-condensing |
||
|
storage temperature/humidity |
-40～+85°C; 5%～95% RH non-condensing |
||
|
Appearance size (L*W*H) |
175*135*48mm |
||
|
Net weight/Gross weight |
＜1.3kg / ＜1.6kg |
||
|
installation method |
Desktop, DIN-rail installation |
||
|
Product Certification and Warranty |
|||
|
Lightning Protection/Protection Level |
Port lightning protection: 6KV 8/20us; protection level: IP40 |
||
|
Applicable industry standard |
IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): power line: ±4kV; data line: ±2kV IEC61000-4-5 (Surge): power line: CM±4kV/DM±2kV; data line: ±4kV IEC61000-4-6 (radio frequency conduction): 10V (150kHz~80MHz) IEC61000-4-8 (power frequency magnetic field): 100A/m continuous; 1000A/m, 1s to 3s IEC61000-4-9 (pulse magnetic field): 1000A/m IEC61000-4-10 (damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (oscillating wave): CM 2.5kV, DM 1kV IEC61000-4-16 (common mode conduction): 30V continuous; 300V, 1s FCC Part 15/CISPR22 (EN55022): Class A IEC61000-6-2 (general industry standard) |
||
|
mechanical properties |
IEC60068-2-6 (anti-vibration) IEC60068-2-27 (shock resistance) IEC60068-2-32 (free fall) |
||
|
Safety certification |
CE，FCC，RoHS，CCC |
||
|
Software Management Features |
|||
|
The port supports IEEE802.3x flow control (full duplex), half-duplex back pressure flow control Supports forced port mode and speed Support broadcast storm and port storm suppression Support port traffic speed limit, the minimum granularity is 16Kbps, the maximum is 1Gbps Support port real-time traffic management (Flow Interval) Support jumbo frame size control, up to 16K data packets Support optical port DDMI digital diagnosis function |
|
||
|
IP routing |
Support L2+ network management function, Support IPV4 static routing/default routing, with a maximum of 128 entries Support ARP protocol, the maximum number of entries is 1024 |
||
|
VLAN |
Support port-based VLAN (4K), IEEE802.1q VLAN Support protocol-based VLAN Support Access, Trunk, Hybrid three types of port configuration |
||
|
port trunking |
Support static aggregation and dynamic aggregation (LACP) Support a maximum of 6/7 aggregation groups, and each aggregation group supports a maximum of 8 ports |
||
|
Ring function |
Support loop protection function
|
||
