TD-IS3204GF
- - TD-IS3204GF series unmanaged industrial Ethernet switches have 4 Gigabit Ethernet ports + 2 Gigabit uplink SFP optical port slots, and all ports support wire-speed forwarding.
- - TD-IS3204GF completely complies with industrial product design and materials. The shell is made of aluminum alloy to enhance heat dissipation performance. It supports 6KV electrostatic surge protection, the protection level reaches IP40, supports dual DC redundant power supply, low power consumption fanless heat dissipation technology, MTBF average trouble-free working time can reach 35 years, and super long 5-year warranty. It is suitable for industrial scenarios such as intelligent transportation, rail transit, electric power industry, mining, petroleum, shipping, metallurgy, pipe gallery and green energy construction to establish a cost-effective, stable and reliable communication network. Non-network management model, plug and play, no need to configure, easy to use;
Product description
TD-IS3204GF series unmanaged industrial Ethernet switches have 4 Gigabit Ethernet ports + 2 Gigabit uplink SFP optical port slots, and all ports support wire-speed forwarding.
TD-IS3204GF completely complies with industrial product design and materials. The shell is made of aluminum alloy to enhance heat dissipation performance. It supports 6KV electrostatic surge protection, the protection level reaches IP40, supports dual DC redundant power supply, low power consumption fanless heat dissipation technology, MTBF average trouble-free working time can reach 35 years, and super long 5-year warranty. It is suitable for industrial scenarios such as intelligent transportation, rail transit, electric power industry, mining, petroleum, shipping, metallurgy, pipe gallery and green energy construction to establish a cost-effective, stable and reliable communication network. Non-network management model, plug and play, no need to configure, easy to use;
Product Features
1.Dual optical port uplink port, long-distance transmission, adaptable to various ring network/chain network cascading and expansion, making networking easier;
2.Industrial-grade high-bandwidth switching chip, high backplane, large cache, reducing network congestion;
3.Support IEEE802.3X full-duplex intelligent flow control, large stream high-definition transmission without lag;
4.Support MAC address automatic learning and updating, support port automatic flip (Auto MDI/MDI-X) function;
5.The service port supports 6KV anti-surge (lightning protection) protection, power short-circuit and overload protection, making it safer and more secure to use;
6.Aluminum alloy profile metal shell, strong heat dissipation, shielding interference, strong, rust-proof and more durable;
7.Dual DC redundant power supply interface, DC12-57V wide voltage input, meeting the wide voltage requirements of industrial environments;
8.DIN35 guide rail installation, IP40 protection level, wide temperature design from -40°C to +75°C, more stable and reliable application in harsh environments;
9.Low power consumption, fanless and silent design, plug and play, no configuration required, easy to use.
Product Specifications
|
Model |
TD-IS3204GF |
|
|
Port characteristics |
||
|
fixed port |
Downlink port |
4 10/100/1000Base-T RJ45 network ports |
|
Uplink Port |
2 1000M SFP optical port slots |
|
|
Network port characteristics |
1-4/1-8 ports 10/100/1000M adaptive, full/half duplex MDI/MDI-X adaptive |
|
|
Twisted pair transmission |
10BASE-T：Cat3,4,5 UTP(≤100 meter) 100BASE-TX：Cat5 or later UTP(≤100 meter) 1000BASE-T：Cat5e or later UTP(≤100 meter) |
|
|
Optical port characteristics |
Gigabit SFP optical fiber interface, the default is not equipped with optical modules, which need to be purchased separately, (optional order mode/multimode, single fiber/dual fiber optical modules, LC/SC) |
|
|
fiber optic cable |
Multi-mode ：850nm 0～550M ， 50μm/125μm&62.5μm/125μm single mode ：1310nm 0～40KM ， 1550nm 0～120KM 。9.5μm/125μm |
|
|
Chip parameters |
||
|
Network management type |
Non-network management |
|
|
Network protocol |
IEEE802.3 10BASE-T； IEEE802.3i 10Base-T； IEEE802.3u 100Base-TX； IEEE802.3ab 1000Base-T； IEEE802.3z 1000Base-X； IEEE802.3x Flow Control； |
|
|
forwarding mode |
Store-and-forward (full wire speed) |
|
|
Backplane Bandwidth |
12Gbps (non-blocking) |
|
|
Packet forwarding rate@64byte |
8.928Mpps |
|
|
MAC address table |
2K |
|
|
packet forwarding cache |
2Mbits |
|
|
jumbo frame |
9.2Kbytes |
|
|
indicator light |
Power indicator: PWR (green); Network indicator: Link/Act (green); Optical port indicator: SFP (green). |
|
|
MTBF |
500,000 hours |
|
|
Power Characteristics |
||
|
Input voltage |
DC12-57V |
|
|
Overall power consumption |
Standby power consumption: <5W; full load power consumption: <8W |
|
|
Supporting power supply |
The power supply is not provided by default and needs to be purchased separately. It is recommended to purchase DC24V/1A |
|
|
Physical Specifications |
||
|
Working temperature/humidity |
-40～+75°C; 5%～90% RH non-condensing |
|
|
storage temperature/humidity |
-40～+85°C; 5%～95% RH non-condensing |
|
|
Appearance size (L*W*H) |
135*95*35mm |
|
|
Net weight/Gross weight |
＜0.5kg / ＜0.8kg |
|
|
installation method |
Desktop, DIN-rail installation |
|
|
Product Certification |
||
|
Lightning Protection/Protection Level |
Port lightning protection: 6KV 8/20us; protection level: IP40 |
|
|
Applicable industry standard |
IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): power line: ±4kV; data line: ±2kV IEC61000-4-5 (Surge): power line: CM±4kV/DM±2kV; data line: ±4kV IEC61000-4-6 (radio frequency conduction): 10V (150kHz~80MHz) IEC61000-4-8 (power frequency magnetic field): 100A/m continuous; 1000A/m, 1s to 3s IEC61000-4-9 (pulse magnetic field): 1000A/m IEC61000-4-10 (damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (oscillating wave): CM 2.5kV, DM 1kV IEC61000-4-16 (common mode conduction): 30V continuous; 300V, 1s FCC Part 15/CISPR22 (EN55022): Class A IEC61000-6-2 (general industry standard) |
|
|
mechanical properties |
IEC60068-2-6 (anti-vibration) IEC60068-2-27 (shock resistance) IEC60068-2-32 (free fall) |
|
|
Safety certification |
CE，FCC，RoHS，CCC |
|
|
Device Information |

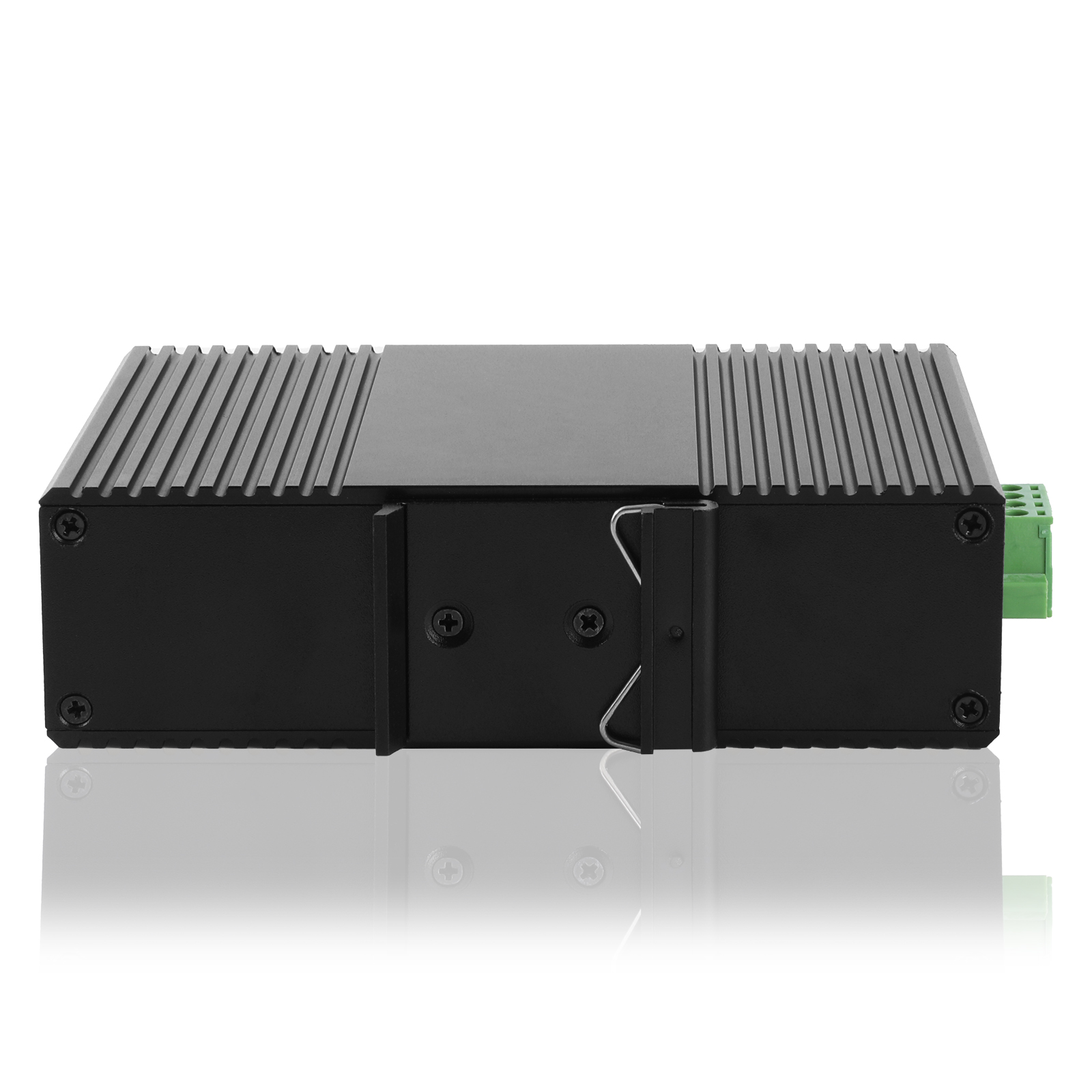

Unmanaged 4 10/100/1000M network ports + 2 Gigabit uplink SFP optical port slots, industrial Ethernet switch, supports dual DC redundant power input (connected by Phoenix terminal), and supports DIN rail installation. |
|
|
Recommended power supply |
24V/1A |
|
