TD-P3204GF
- - TD-P3204GF series unmanaged PoE switches have 5 Gigabit electrical ports + 1 Gigabit SFP fiber slot, of which 1-4 Gigabit ports support IEEE 802.3af/at standard PoE power supply, and the single-port PoE power can reach 30W. As a PoE power supply device, it can automatically detect and identify standard powered devices and supply power to them through network cables. It can supply power to POE terminal equipment such as wireless AP, network camera, Internet phone, video door intercom, etc. through the network cable to meet the network environment that requires high-density PoE power supply. It is suitable for hotels, campuses, factory dormitories and small and medium-sized enterprises to form economical Efficient network.
Product Description
TD-P3204GF series unmanaged PoE switches have 5 Gigabit electrical ports + 1 Gigabit SFP fiber slot, of which 1-4 Gigabit ports support IEEE 802.3af/at standard PoE power supply, and the single-port PoE power can reach 30W. As a PoE power supply device, it can automatically detect and identify standard powered devices and supply power to them through network cables. It can supply power to POE terminal equipment such as wireless AP, network camera, Internet phone, video door intercom, etc. through the network cable to meet the network environment that requires high-density PoE power supply. It is suitable for hotels, campuses, factory dormitories and small and medium-sized enterprises to form economical Efficient network.
Non-network management model, plug and play, no need to configure, easy to use and maintain;
Product Features
nFull Gigabit ports
◇Support the combination of "Ethernet port + Gigabit optical port", which is convenient for users to network flexibly and meet the networking needs of various scenarios;
◇All ports support non-blocking wire-speed forwarding for smoother transmission.
◇Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.
nIntelligent PoE power supply function
◇ Four 10/100/1000Base-T RJ45 ports support PoE power supply to meet the needs of PoE power supply in scenarios such as security monitoring, teleconferencing systems, and wireless coverage.
◇ Comply with IEEE 802.3af/at PoE power supply standard, automatically identify PoE devices for power supply, without damaging non-PoE devices, and the maximum PoE output power of a single port is 30W.
◇ The PoE port supports a priority mechanism. When the remaining power is insufficient, the power supply of the high-priority port is given priority to avoid overloading of the device.
nEquipment is stable and reliable, easy to operate
◇ Low power consumption design of the host, metal shell, super heat dissipation, to ensure stable operation of the product.
◇ Highly redundant design power supply is used to provide long-term stable PoE power output.
◇ The equipment meets the national CCC standard, fully complies with CE, FCC, and RoHS safety regulations, and is safe and reliable to use.
◇ Users can easily understand the working status of the device through the power indicator (PWR), port status indicator (Link), and PoE work indicator (PoE).
Product Specification
|
Model |
TD-P3204GF |
TD-P3308GF |
|
|
port characteristics |
|||
|
Fixed Port |
Four 10/100/1000Base-T POE ports (Data/Power) One 10/100/1000Base-T RJ45 network port One 1000Base-X uplink SFP optical port slot (Data) |
Eight 10/100/1000Base-T POE ports (Data/Power) Two 10/100/1000Base-T RJ45 network ports One 1000Base-X uplink SFP optical port slot (Data) |
|
|
Network port characteristics |
1-5/1-10 ports 10/100/1000Base-T automatic detection, full/half duplex MDI/MDI-X adaptive |
||
|
Twisted pair transmission |
10BASE-T：Cat3,4,5 UTP(≤100 meter) 100BASE-TX：Cat5 or later UTP(≤100 meter) 1000BASE-T：Cat5e or later UTP(≤100 meter) |
||
|
Optical port characteristics |
Gigabit SFP optical fiber interface, the default is not equipped with optical modules, which need to be purchased separately, (optional order mode/multimode, single fiber/dual fiber optical modules, LC) |
||
|
fiber optic cable |
Multi mode ：850nm 0～550M ， Single mode ：1310nm 0～40KM ， 1550nm 0～120KM 。 |
||
|
Chip parameters |
|||
|
Network protocol |
IEEE802.3 10BASE-T； IEEE802.3i 10Base-T； IEEE802.3u 100Base-TX； IEEE802.3ab 1000Base-T； IEEE802.3z 1000Base-X； IEEE802.3x |
||
|
forwarding mode |
Store-and-forward (full wire speed) |
||
|
Backplane Bandwidth |
12Gbps (non-blocking) |
22Gbps (non-blocking) |
|
|
Packet forwarding rate@64byte |
8.93Mpps |
16.37Mpps |
|
|
MAC address table |
2K |
4K |
|
|
packet forwarding cache |
2M |
||
|
jumbo frame |
9.2K |
||
|
LED indicator |
Power indicator: PWR (green); Network indicator: Link (green); POE work indicator: PoE (green) |
||
|
PoE and Power Characteristics |
|||
|
POE power supply standard |
1-4 ports support IEEE802.3af/at standard POE power supply |
1-8 ports support IEEE802.3af/at standard POE power supply |
|
|
power pin |
By default, only 1/2(+), 3/6(-) 4-core power supply is supported |
||
|
Maximum single port POE power |
30W, standard IEEE802.3af/at |
||
|
Total power/input voltage |
65W （AC100-240V） |
120W （AC100-240V） |
|
|
Power consumption |
Standby power consumption: <4W; full load power consumption: <65W |
Standby power consumption: <6W; full load power consumption: <120W |
|
|
Input voltage and interface |

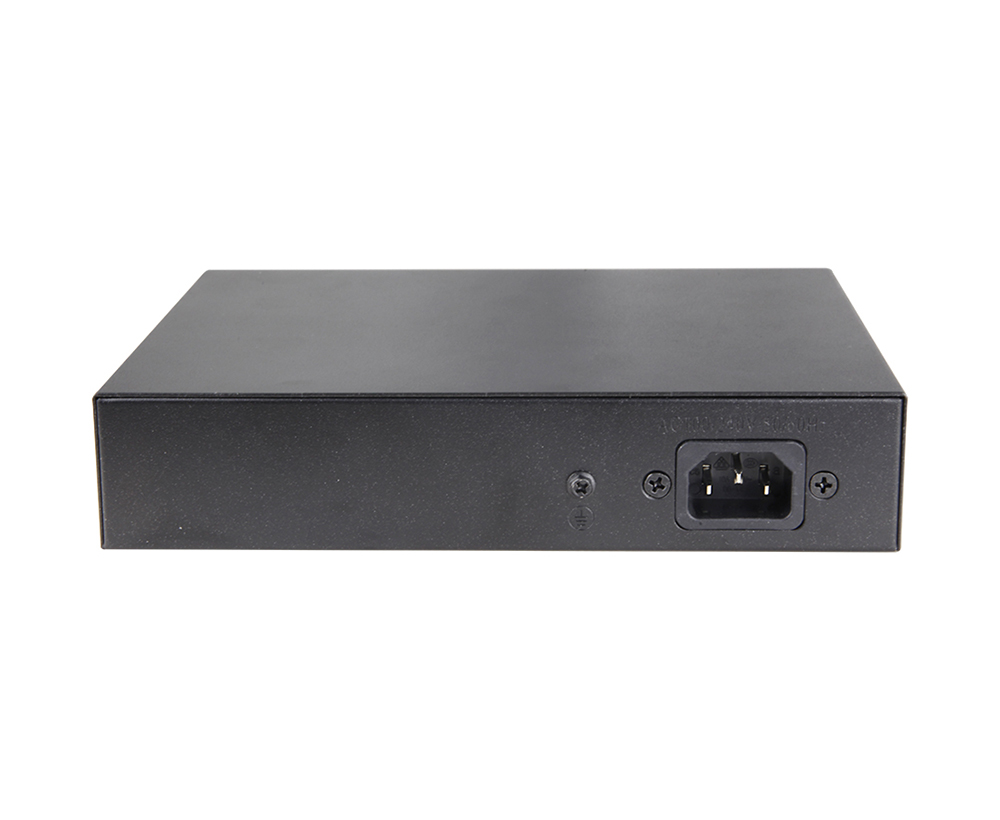

Built-in switching power supply AC: 100～240V 50-60Hz 1.0A |
Built-in switching power supply AC: 100～240V 50-60Hz 2.2A |
|
|
Physical Specifications |
|||
|
Working temperature/humidity |
-20～+55°C; 5%～90% RH non-condensing |
||
|
storage temperature/humidity |
-40～+85°C; 5%～95% RH non-condensing |
||
|
Appearance size (L*W*H) |
200*118*44mm |
||
|
Net weight/Gross weight |
＜0.6kg / ＜1kg |
＜0.8kg / ＜1.2kg |
|
|
installation method |
Desktop, wall-mounted installation |
||
|
Product Certification |
|||
|
Lightning Protection/Protection Level |
Port lightning protection: 4KV 8/20us; Protection class: IP30 |
||
|
Certification |
3C；
CE mark, commercial；CE/LVD EN62368-1； |
||
|
Model |
Device information |
Power supply |
|
TD-P3204GF |
Unmanaged 5 10/100/1000M RJ45 ports + 1 1000M SFP optical slot Ethernet PoE switch, 1-4 ports support IEEE 802.3af/at international standards. Built-in 65W power supply. |
65W |
|
TD-P3308GF |
Unmanaged 10 10/100/1000M RJ45 ports + 1 1000M SFP optical slot Ethernet PoE switch, 1-8 ports support IEEE 802.3af/at international standards. Built-in 120W power supply. |
120W |
