TD-D2ICR36W
- - Large Screen Display: Features a 7" LCD touch screen with 1024x600 resolution.
- - Advanced Features: Supports call, photo capture, video recording, remote unlocking, and visitor record.
- - Enhanced Security: Incorporates pedestrian detection, automatic photo and video capture, and sending alarms to both indoor monitor and phone APP.
- - Secure Lock Control: Offers compatibility with magnetic locks and electronic locks, complete with locking delay time settings.
- - Connectivity and APP Integration: Connects through 2.4G WiFi and seamlessly integrates with the Tuya APP.
- - IC Card Unlock: Provides the extra convenience of IC card unlocking.
Specifications
Whole Unit
Adapter
input: AC100-240V 50/60Hz
output: DC12V 2A
Distance (Between Indoor Monitor and Outdoor Station)
0~50m (RVV2*0.5mm², 12V voltage)
0~200m (RVV2*0.5mm², 24V voltage)
Distance (Between Outdoor Station and Door Lock)
0~50m (RVV2*0.5mm²)
Wiring
2-wire connection (No polarity)
Working Temperature
-20°C~70°C
Working Relative Humidity
10%~70%
Call Duration
2 minutes
2-Way Audio
support
Tuya APP
20 users capacity, supports functions including: call, photo, video, monitor, unlock, cloud storage, alarm message, video playback

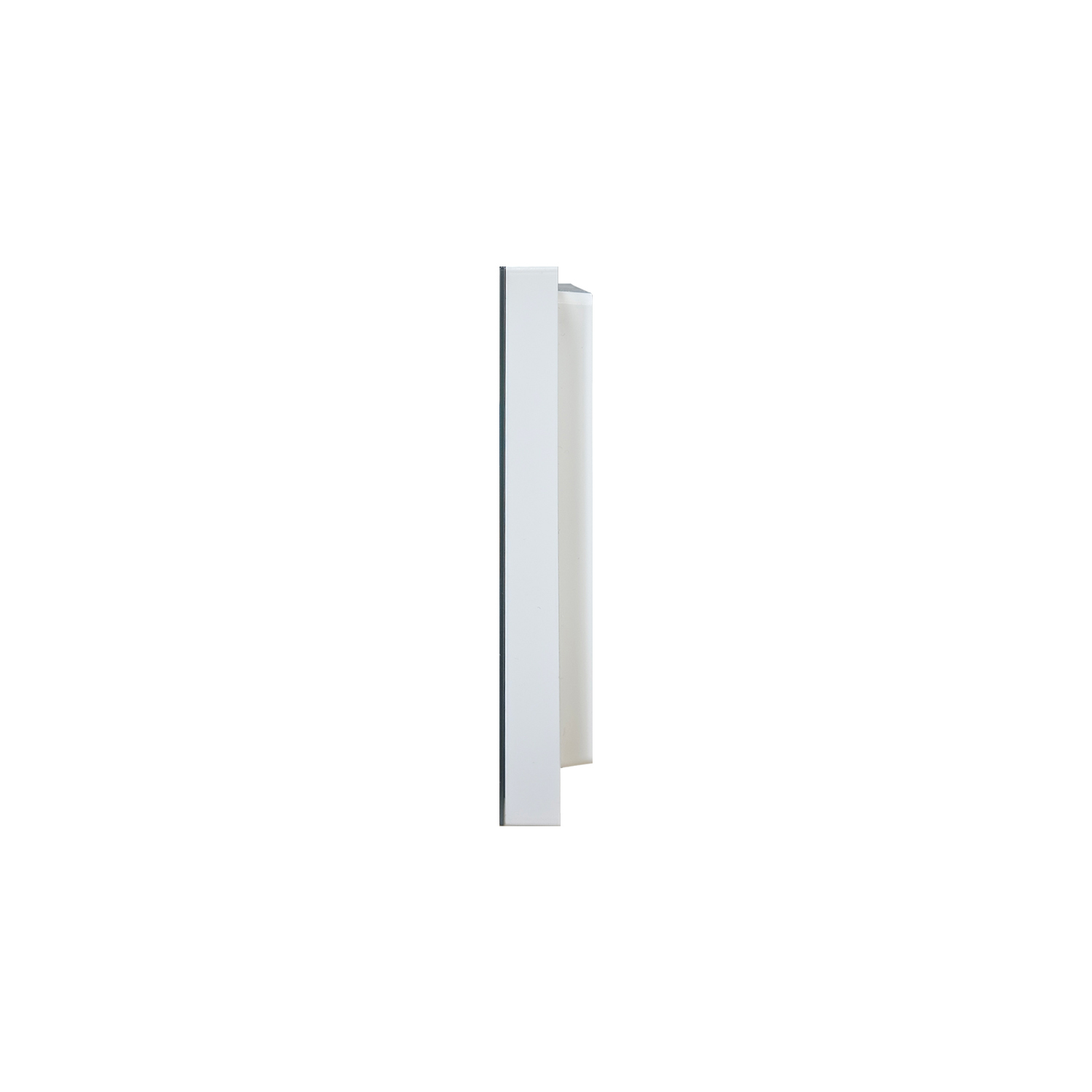

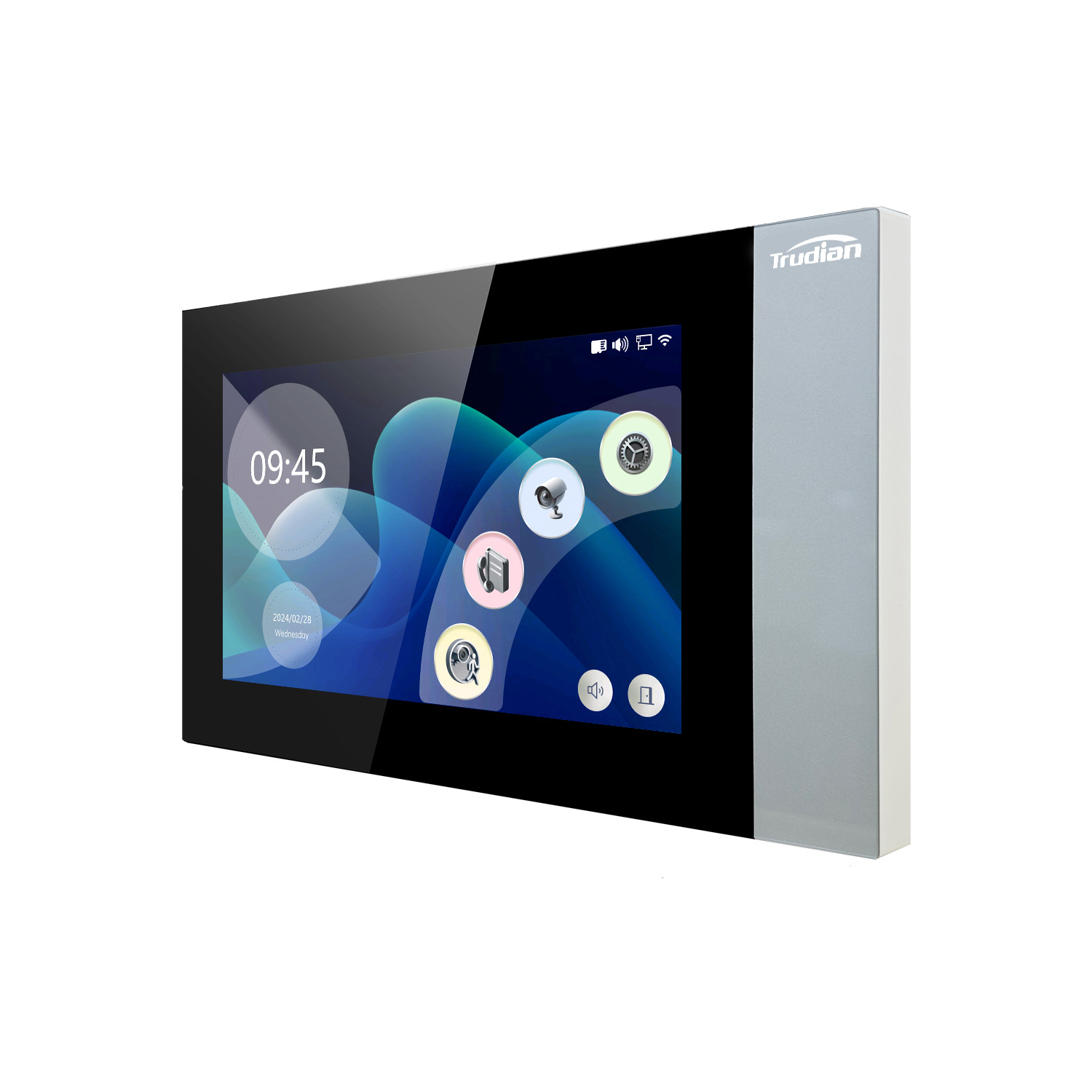

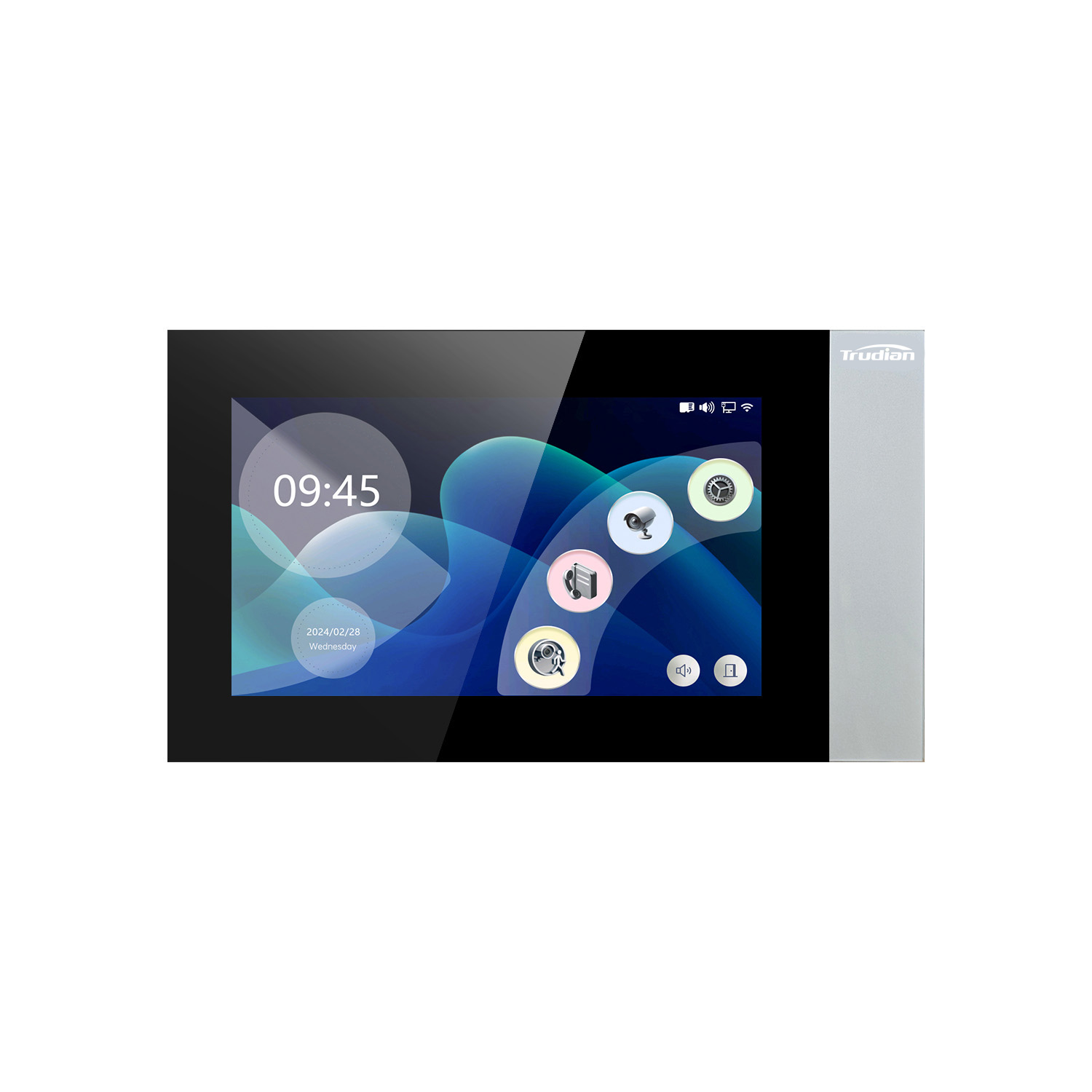

Indoor Monitor
Dimensions
219x124x20mm
Display
7" LCD touch screen
Screen Resolution
1024*600
OS
Embedded Linux
Random Access Memory
128M
Flash
16M
Material
engineering ABS plastic and tempered glass
Power Consumption
static state <3W
working state <4W
Working Voltage
DC 12~24V
Network
2.4G WiFi
Installation
wall-mounted
Functions
call, photo, video, monitor, unlock, visitor record, pedestrian detection, calendar display, adjust brightness & contrast & color & volumn, lock delay adjustment, multi-language OSD menu
External TF Card
max 512GB storage, automatically save photo and video
Photo Storage Capacity
1000

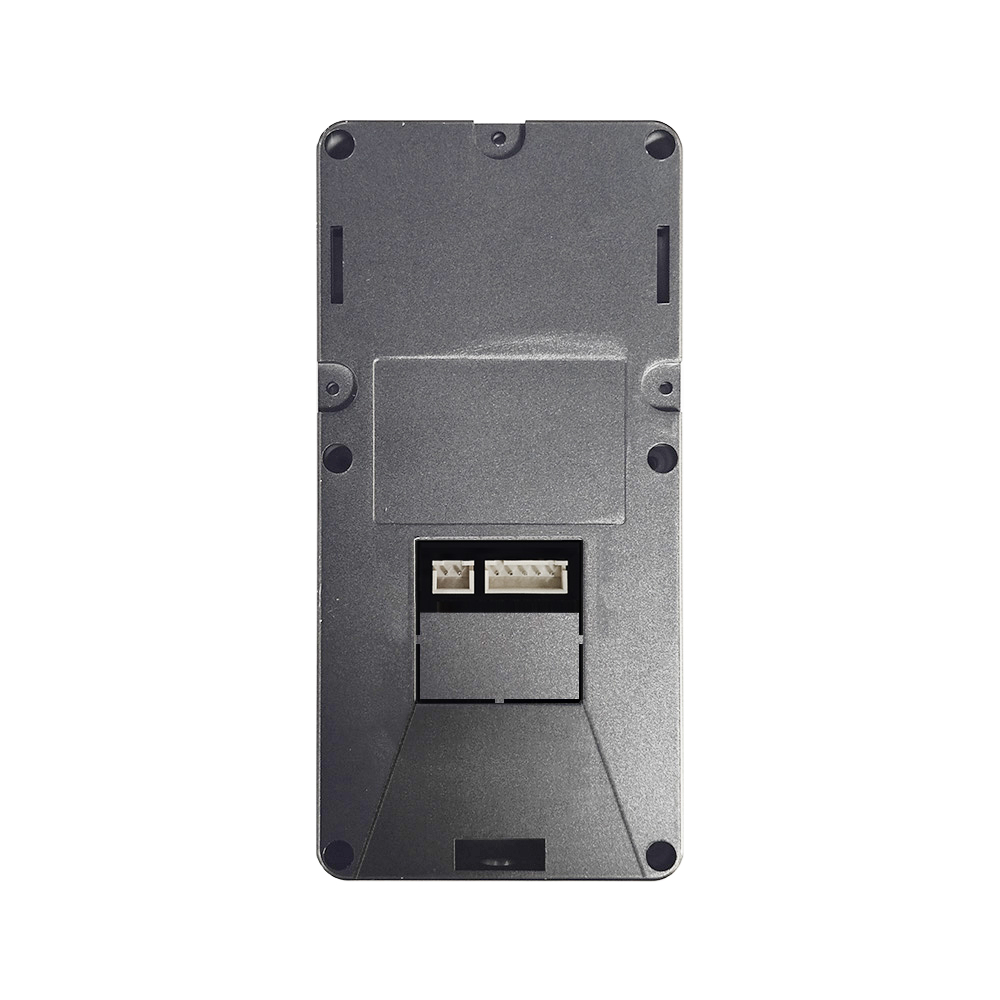

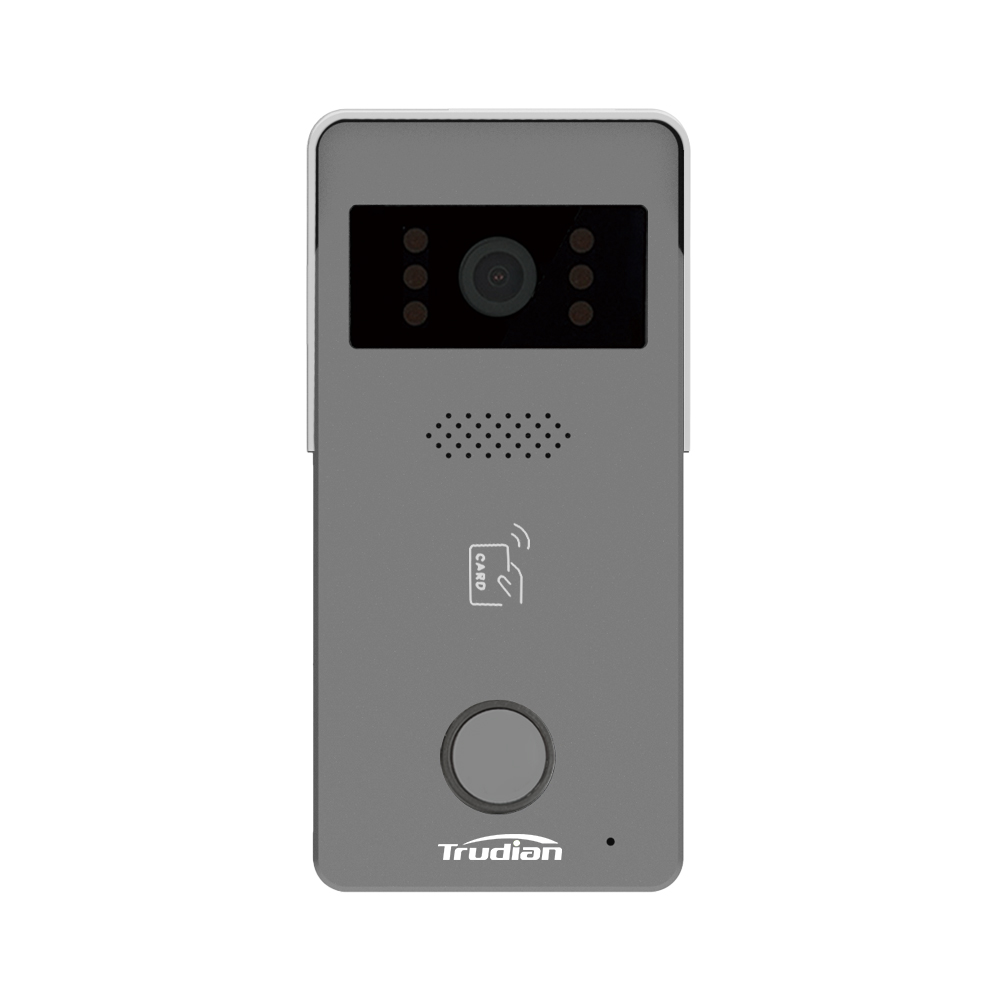

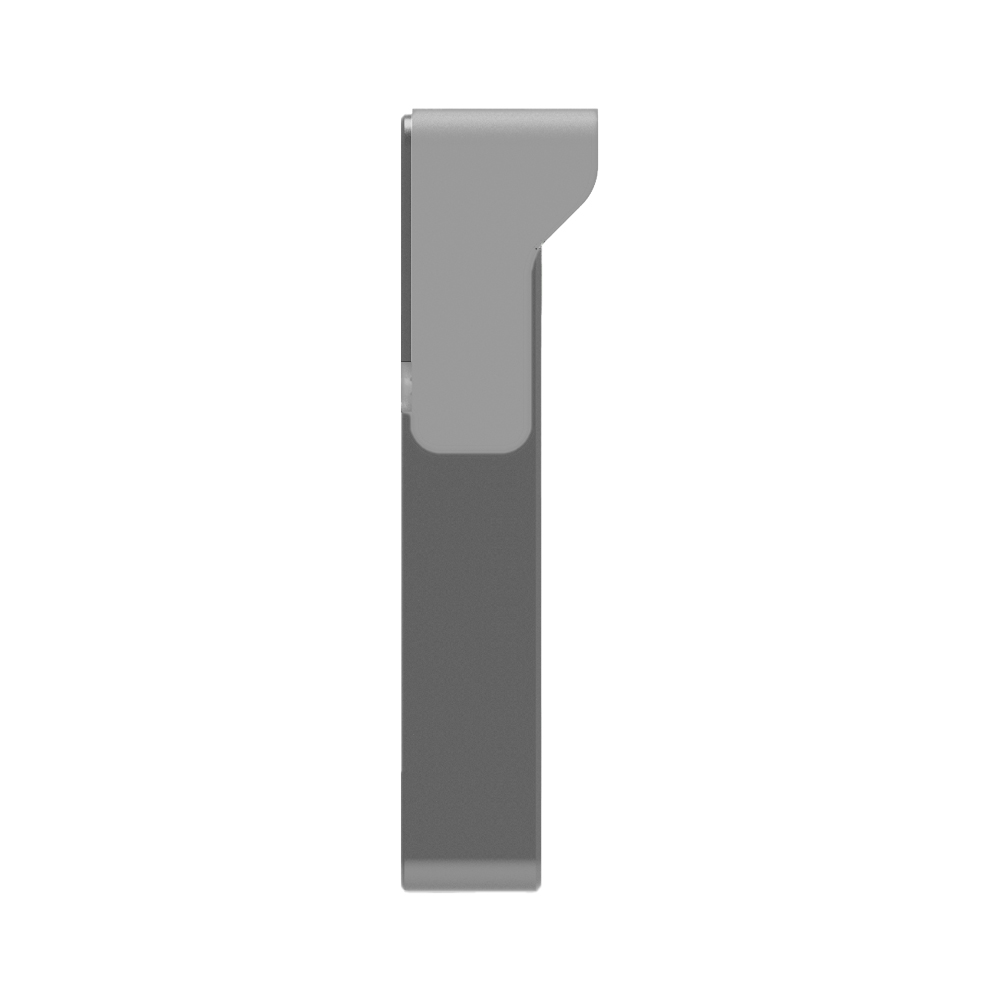

Outdoor Station
Dimensions
66x138x23.5mm
Material
engineering ABS plastic
Camera
2 million pixels/1080P
View Angle
110°
Night Vision
IR CUT switch, high color precision, black and white image
Fill Light
940nm (6 Infrared LED)
Door Lock Control
connectable to magnetic lock and electronic lock, indoor monitor features lock delay time setting
Smart Motion Detection
photo and video
IC Card Unlock
support
Power Consumption
static state <2W,
working state <4W
Installation
wall-mounted
IP Rating
IP65
