TD-S1224GF
- - TD-S1224GF series is a self-developed unmanaged full Gigabit Ethernet security switch, equipped with 24 Gigabit adaptive electrical ports + 2 Gigabit SFP uplink fiber slots. The photoelectric combination interface allows customers to realize convenient connection and expansion of the network without being affected by the transmission medium. Optimizing the large backplane, large cache switching chip solution, improving the forwarding rate of large files, and effectively solving the problems of video freeze and picture loss in the high-definition monitoring environment. It is suitable for hotels, banks, campuses, factory dormitories and small and medium-sized enterprises to form cost-effective networks.
Product description
TD-S1224GF series is a self-developed unmanaged full Gigabit Ethernet security switch, equipped with 24 Gigabit adaptive electrical ports + 2 Gigabit SFP uplink fiber slots. The photoelectric combination interface allows customers to realize convenient connection and expansion of the network without being affected by the transmission medium. Optimizing the large backplane, large cache switching chip solution, improving the forwarding rate of large files, and effectively solving the problems of video freeze and picture loss in the high-definition monitoring environment. It is suitable for hotels, banks, campuses, factory dormitories and small and medium-sized enterprises to form cost-effective networks.
Non-network management model, plug and play, no need to configure, easy to use.
Product Features
nFull Gigabit rate, high-speed transmission
◇The whole series supports the combination of "Gigabit Ethernet port + Gigabit optical port", which is convenient for users to network flexibly and meet the networking needs of various scenarios;
◇All ports support non-blocking wire-speed forwarding for smoother transmission.
◇Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.
nEquipment is stable and reliable
◇ The host has low power consumption, active fan heat dissipation design, and metal casing to ensure stable operation of the product.
◇ Adopt self-developed power supply and high redundancy design to provide long-term stable power output.
◇ The equipment meets the national CCC standard, fully complies with CE, FCC, and RoHS safety regulations, and is safe and reliable to use.
nSimple operation
◇ Plug and play, no need to configure, simple and convenient.
◇ Users can easily understand the working status of the device through the power indicator (PWR) and port status indicator (Link/Act).
Product Specification
|
Model |
XW-S1216GF |
XW-S1224GF |
|
port characteristics |
||
|
Fixed Port |
16 10/100/1000Base-TX RJ45 ports (Data) 2 1000Base-X SFP uplink optical port slots (Data) |
24 10/100/1000Base-TX RJ45 ports (Data) 2 1000Base-X SFP uplink optical port slots (Data) |
|
Network port characteristics |
10/100/1000Base-T automatic detection, full/half duplex MDI/MDI-X adaptive |
|
|
Twisted pair transmission |
10BASE-T：Cat3,4,5 UTP(≤100 meter) 100BASE-TX：Cat5 or later UTP(≤100 meter) 1000BASE-T：Cat5e or later UTP(≤100 meter) |
|
|
Chip parameters |
||
|
Network protocol |
IEEE802.3 10BASE-T； IEEE802.3i 10Base-T； IEEE802.3u 100Base-TX； IEEE802.3ab 1000Base-T； IEEE802.3z 1000Base-X； IEEE802.3x |
|
|
forwarding mode |
Store-and-forward (full wire speed) |
|
|
Backplane Bandwidth |
48Gbps (non-blocking) |
52Gbps (non-blocking) |
|
Packet forwarding rate@64byte |
26.78Mpps |
38.69Mpps |
|
MAC address table |
8K |
|
|
packet forwarding cache |
4M |
|
|
jumbo frame |
10Kbyte |
|
|
LED indicator |
Power indicator: PWR (green); Data indicator: Link/Act (green) |
|
|
power characteristics |
||
|
Total power/input voltage |
30W （AC100-240V） |
|
|
power consumption |
Standby power consumption: <6W; full load power consumption: <12W |
Standby power consumption: <8W; full load power consumption: <15W |
|
power supply |

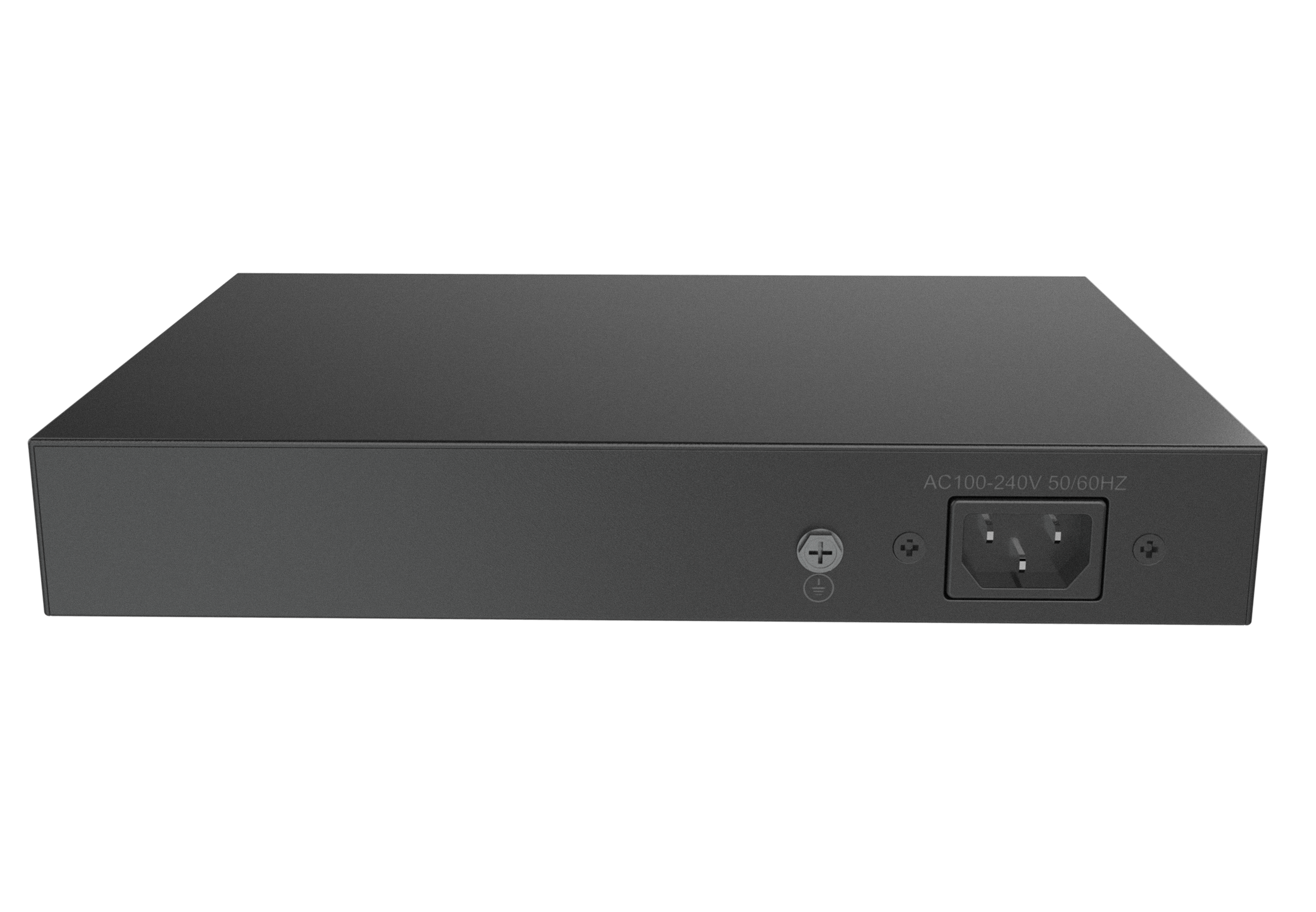

Built-in switching power supply, AC: 100～240V 50-60Hz 0.56A |
|
|
Physical Specifications |
||
|
Working temperature/humidity |
-20～+55°C; 5%～90% RH non-condensing |
|
|
storage temperature/humidity |
-40～+75°C; 5%～95% RH non-condensing |
|
|
Appearance size (L*W*H) |
290*200*45mm |
|
|
Net weight/Gross weight |
＜1.0kg / ＜1.5kg |
|
|
installation method |
Desktop, rack mount |
|
|
Product Certification |
||
|
Lightning Protection/Protection Level |
Port lightning protection: 4KV 8/20us; Protection class: IP30 |
|
|
Certification |
3C；
CE mark, commercial；CE/LVD EN60950； |
|
|
Model |
Device information |
Standard Power Supply |
|
TD-S1216GF |
Unmanaged 16 10/100/1000M RJ45 ports + 2 1000M SFP fiber slots, Ethernet security switch, built-in power supply, desktop and rack installation. |
30W |
|
TD-S1224GF |
Unmanaged 24 10/100/1000M RJ45 ports + 2 1000M SFP fiber slots, Ethernet security switch, built-in power supply, desktop and rack installation. |
30W |
