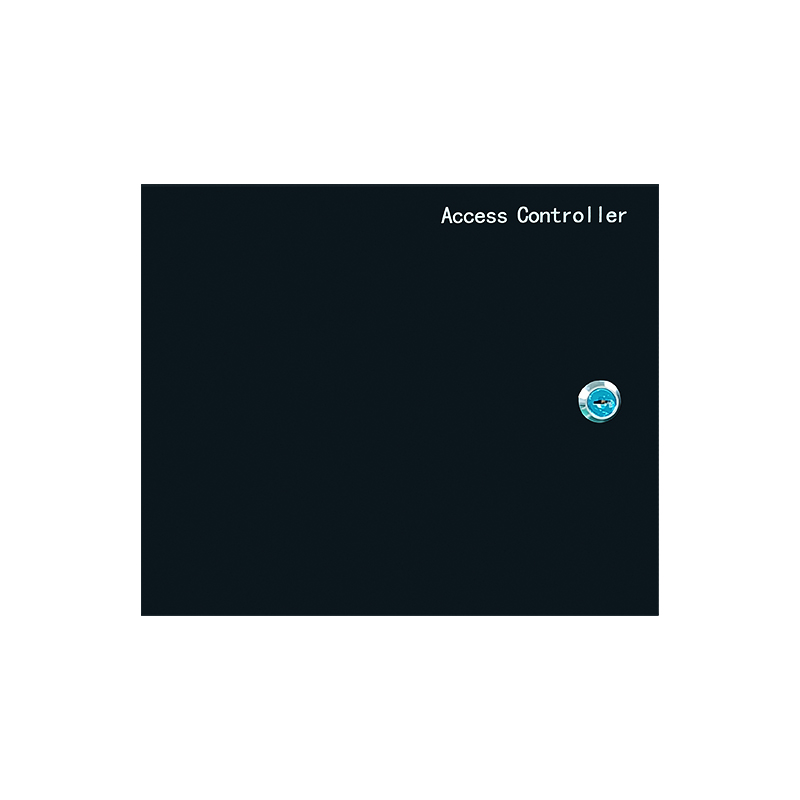

TD-8704A (Four doors)
- - Assembled by engineering control iron box
- - Built-in AC-DC switching power supply assembly;
- - Multiple working modes: TCP/IP networking, offline;
- - Integrates a variety of unlocking methods: management center, exit button, card swiping [requires a Wiegand reader to realize];
- - Support 4-way reading heads to control 4-way door locks (4-door single-way);
Assembled by engineering control iron box
Built-in AC-DC switching power supply assembly;
Multiple working modes: TCP/IP networking, offline;
The Wiegand bus communication method is adopted between the controller and the reader, which is universally applicable;
Integrates a variety of unlocking methods: management center, exit button, card swiping [requires a Wiegand reader to realize];
Support multiple advanced access control functions;
Can store user data, support stand-alone operation in disconnected mode;
Support 4-way reading heads to control 4-way door locks (4-door single-way);
Parameters
| Power supply | AC100-240V~50/60HZ 1A |
| OS | Embedded |
| Card capacity | 40000 |
| Password capacity | 20000 |
| Door opening record capacity | 50000 |
| Working temperature | -20℃~70℃ |
| Working humidity | 10%~93% |
| Appearance material | engineering iron box |
| Installation method | wall-mounted |

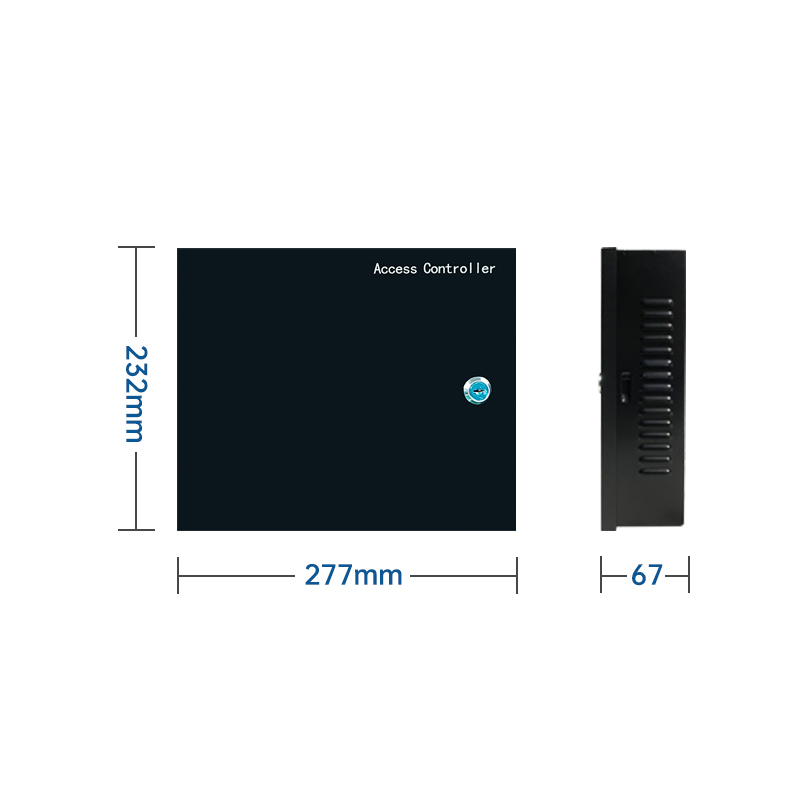

| Appearance size | 277x232x67MM |
| External Interface |
|
| Power supply | 12V power interface |
| Network | 1 RJ45 10M/100M adaptive Ethernet port |
| Read head | 4 sets of Wiegand read head communication interface |
| Exit button | 4 groups of exit button signal detection input interface |
| Door sensor | 4 groups of door sensor signal detection input interfaces |
| Fire linkage | 1 set of fire linkage detection input interface |
| Unlocking | 4 groups of common ports, normally open and normally closed ports |
