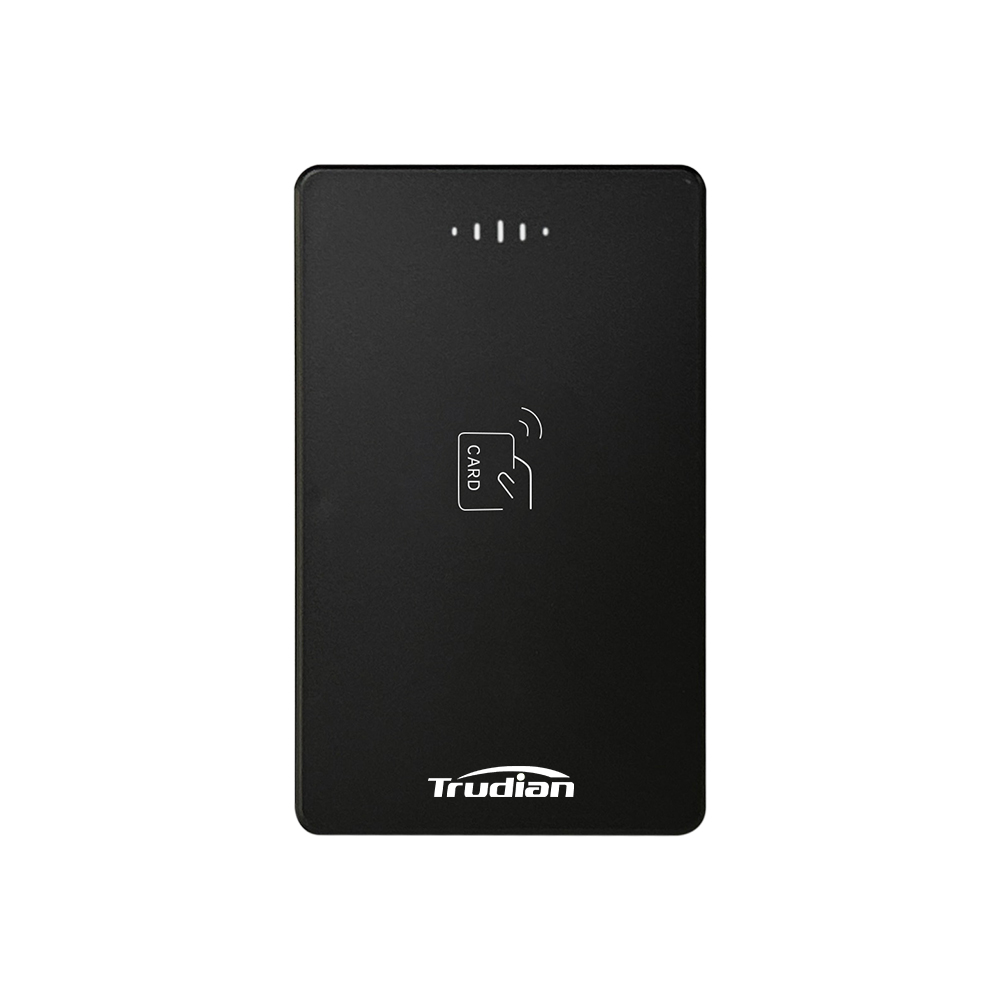

TD-12MAT
- - Standalone working mode;
- - Unlocking methods: card and exit button;
- - Wall-mounted installation for easy setup.
Appearance: Made of engineering ABS plastic material;
Standalone: Operates independently.
Unlocking: Supports cards and exit button.
Size: Compact at 118x72x16mm.
Power: Runs on DC12V, with low standby and working current.
Capacity: Holds 1000 cards and records.
Interfaces: Equipped with exit button, door magnetic sensor, relay output, doorbell, data backup, Wiegand, and status sync support.
Specifications
Working Mode
standalone
Unlocking Methods
card, exit button
Appearance Size
118x72x16mm
Working Voltage
DC12V
Standby Current
40mA±20mA
Working Current
60mA±20mA
OS
Embedded system
CPU
ARM Cortex M0
Memory
8K
Flash
64K
Reading Distance
0~4cm
PIN Capacity
1000
Card Capacity
1000
PIN + Card Capacity
1000
Unlock Record Capacity
1000
Working Temperature
-40℃~70℃
Working Humidity
10%~93%
Appearance Material
ABS
Installation Method
wall-mounted
External Interface
Power Supply
12V power interface
Exit Button
1 set of exit button signal detection input interface
Door Magnetic Sensor
1 set of door magnetic sensor signal detection input interface
Relay Output
1 set of relay common port, NO port and NC port
Doorbell
1 set of Dingdong doorbell signal output interface
Data Backup
1 set of data backup and record export interface
Wiegand
1 set of Wiegand bus communication interface
Wiegand Communication Mode
1 set of WG26/WG34 data format switching interface
Status Sync
1 set of controller-synced indicator/buzzer status signal interface
