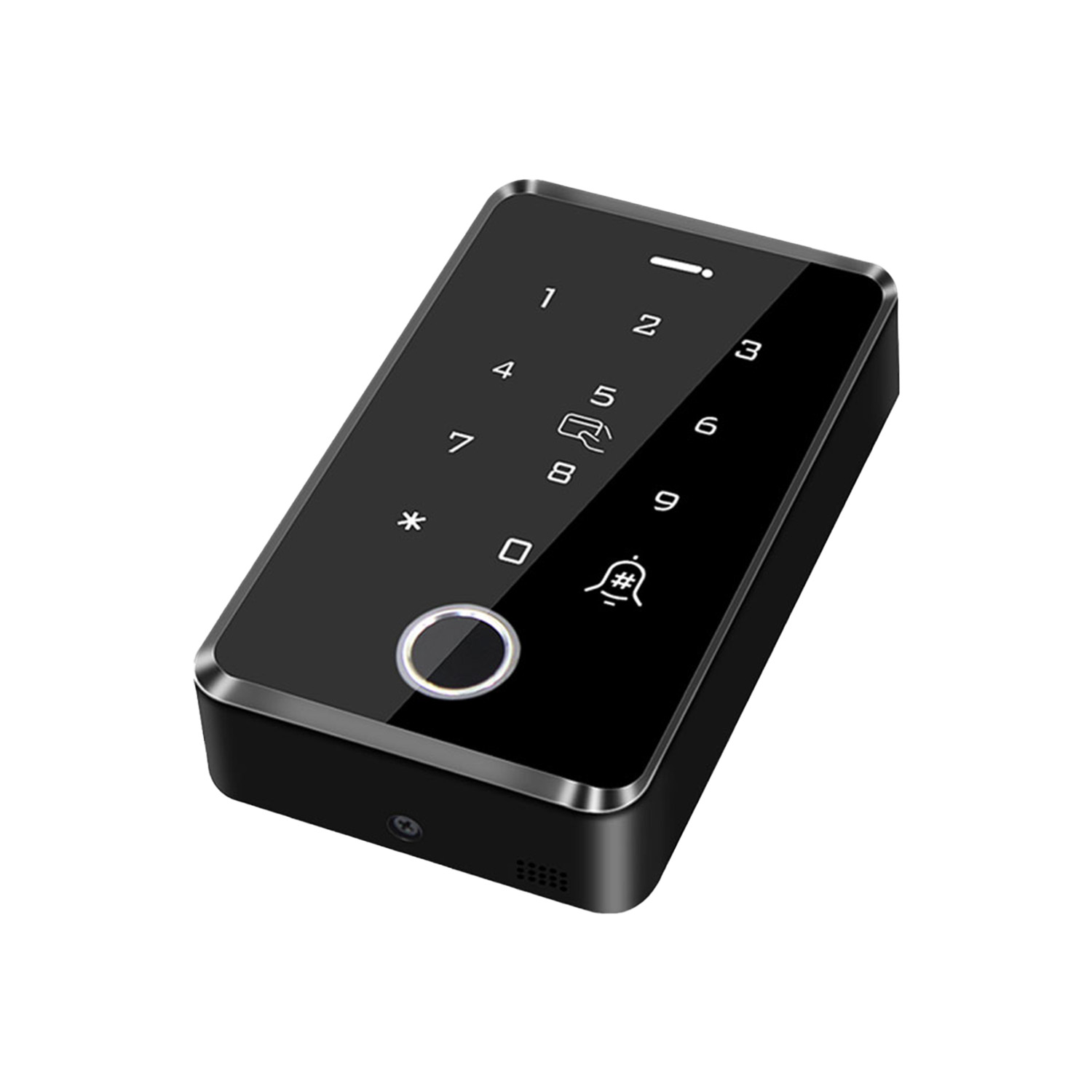

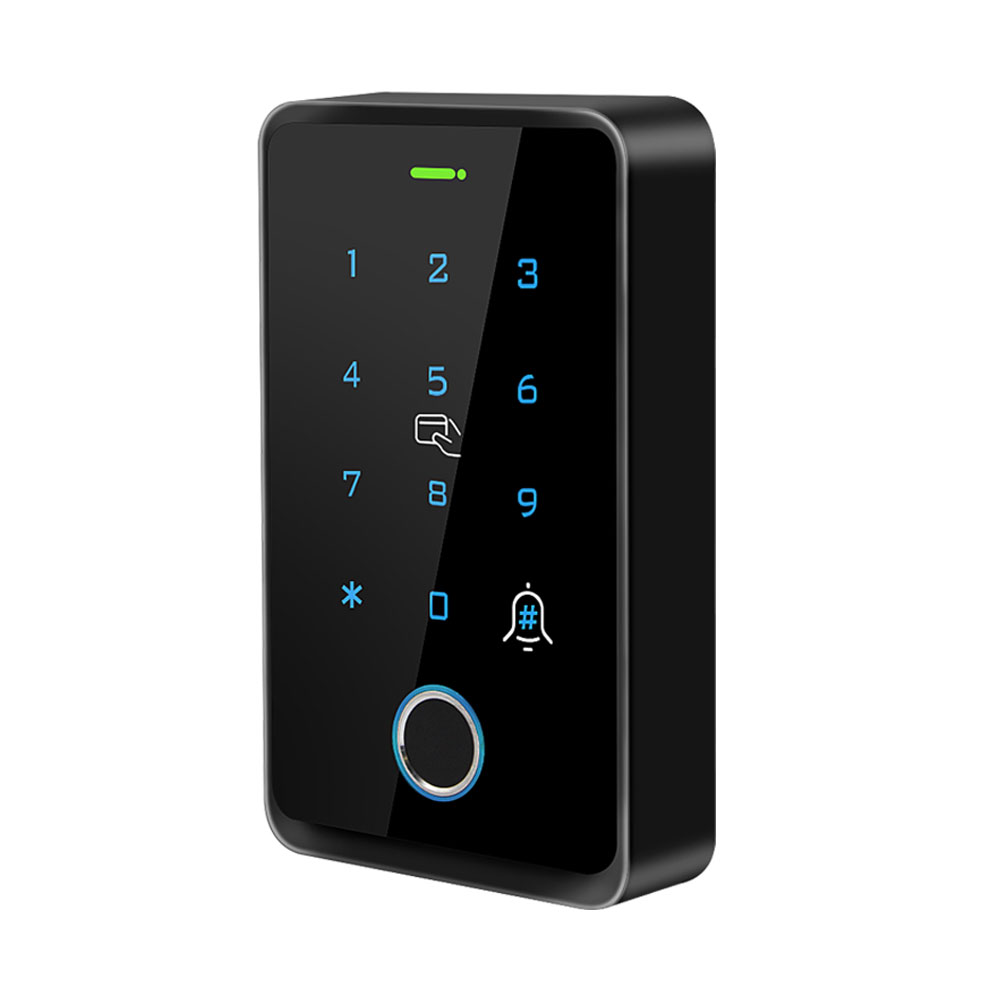

TD-13MWT
- - Multiple Working Modes: Supports both TCP/IP networking and standalone modes.
- - Comprehensive Unlocking Methods: Includes Tuya Smart App, fingerprint, password, card, and exit button.
- - Modern Touch Keypad: Features a touch-sensitive keypad with LED backlight for easy operation in low light.
- - Integrated Doorbell Functionality: Includes support for a built-in doorbell button and external wired doorbell.
- - Weatherproof Design: Certified IP66 for protection against water and dust, suitable for outdoor use.
- - Smartphone App Integration: Works with the Tuya Smart App via 2.4G WiFi for remote management.
- - Security Alarms: Compatible with door magnetic alarms for enhanced security.
Specifications
| Working Modes | TCP/IP networking, standalone |
| Unlocking Methods | Tuya Smart App, fingerprint, password, card, exit button |
| Appearance Size | 126x74x23mm |
| Appearance Material | ABS material and acrylic panel |
| Fingerprint Capacity | 100 |
| Password Capacity | 1000 |
| Card Capacity | 2500 |
| Card Type | ID+IC card, 125Khz+13.56Mhz RFID |
| Card Reading Distance | 2~5cm |
| Password Keypad | touch keypad |
| LED Backlight Display | support |
| Doorbell Button | support |
| Fingerprint Sensor | semiconductor fingerprint sensor |
| Recognition Speed | ≤0.3s |
| Unlocking Time | 1~99seconds (adjustable) |
| Phone App | Tuya Smart App |
| Tuya Smart App Connection | 2.4G WiFi |
| Installation Method | wall-mounted |
| Working Voltage | DC 12V |
| Standby Current | ≤30mA |
| Working Temperature | -40℃~60℃ |
| Working Relative Humidity | 10~90% |
| IP Rating | IP66 |
| Wiegand Format | Wiegand 26/34 |
| Door Magnetic Alarm | support |
| External Wired Doorbell | support |
