TD-P3316
- - TD-P3316 series unmanaged AI PoE switches, with 16 100M electrical ports + 2 Gigabit uplink electrical ports + 1 Gigabit SFP optical port slot, of which 1-16 ports support IEEE 802.3af/at standard PoE power supply , single-port PoE power up to 30W. As a PoE power supply device, it can automatically detect and identify standard powered devices and supply power to them through network cables. It can supply power to POE terminal equipment such as wireless AP, network camera, Internet phone, video door intercom, etc. through network cables, meeting the network environment that requires high-density PoE power supply, suitable for hotels, campuses, parks, banks, hospitals, factories, etc. Small and medium-sized businesses form cost-effective networks.
Product Description
TD-P3316 series unmanaged AI PoE switches, with 16 100M electrical ports + 2 Gigabit uplink electrical ports + 1 Gigabit SFP optical port slot, of which 1-16 ports support IEEE 802.3af/at standard PoE power supply , single-port PoE power up to 30W. As a PoE power supply device, it can automatically detect and identify standard powered devices and supply power to them through network cables. It can supply power to POE terminal equipment such as wireless AP, network camera, Internet phone, video door intercom, etc. through network cables, meeting the network environment that requires high-density PoE power supply, suitable for hotels, campuses, parks, banks, hospitals, factories, etc. Small and medium-sized businesses form cost-effective networks.
Non-network management model, plug and play, no need to configure, easy to use.
Product Feature
n100M access, Gigabit optical uplink
◇Provide 16 10/100M electrical ports and 1 10/100/1000M electrical port + 1 1000M optical port, which is convenient for users to network flexibly and meet the networking needs of various scenarios.
◇ All ports support non-blocking wire-speed forwarding for smoother transmission.
◇ Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.
nIntelligent PoE power supply function
◇ 16 10/100Base-TX RJ45 ports support PoE power supply, meeting the needs of PoE power supply in scenarios such as security monitoring, teleconferencing systems, and wireless coverage.
◇ Comply with IEEE 802.3af/at PoE power supply standard, automatically identify PoE devices for power supply, without damaging non-PoE devices, and the maximum PoE output power of a single port is 30W.
◇ The PoE port supports a priority mechanism. When the remaining power is insufficient, the power supply of the high-priority port is given priority to avoid overloading of the device.
n Innovative features
◇Long-distance mode (E): The switch is turned to "ON" position (default "OFF"), and the rate of opening 1-16 ports is reduced to 10M. Using the existing twisted pair, you can break through the 100-meter transmission limit of the twisted pair Limitation, the transmission distance can reach up to 250 meters; on the other hand, it can solve the problem of poor transmission caused by aging lines.
nSimple operation
◇ Plug and play, no need to configure, simple and convenient.
◇ With a function switch, innovative and practical functions when one key is turned on.
◇ Users can easily understand the working status of the device through the power indicator (Power), port status indicator (Link, L/A), and PoE work indicator (PoE).
◇ Support desktop and 1U/19-inch cabinet installation.
nEquipment is stable and reliable
◇ Low power consumption of the host, silent fan heat dissipation design, galvanized metal shell, to ensure stable operation of the product.
◇ Using self-developed power supply, high redundancy design, providing long-term stable PoE power output.
◇ The equipment meets the national CCC standard, fully complies with CE, FCC, and RoHS safety regulations, and is safe and reliable to use.
Product Specification
|
Model |
TD-P3316 |
TD-P3324 |
|
|
port characteristics |
|||
|
Fixed port |
16 10/100Base-TX POE ports (Data/Power) 2 10/100/1000Base-T uplink RJ45 ports (Data) 1 1000Base-X SFP optical port slot (Data) |
24 10/100Base-TX POE ports (Data/Power) 2 10/100/1000Base-T uplink RJ45 ports (Data) 1 1000Base-X SFP optical port slot (Data) |
|
|
Network port characteristics |
1-16 ports 10/100Base-TX, 17-18 ports 10/100/1000Base-T(X) automatic detection, full/half duplex MDI/MDI-X adaptive |
1-24 ports 10/100Base-TX, 25-26 ports 10/100/1000Base-T(X) automatic detection, full/half duplex MDI/MDI-X adaptive |
|
|
Twisted pair transmission |
10BASE-T：Cat3,4,5 UTP(≤100 meter) 100BASE-TX：Cat5 or later UTP(≤100 meter) 1000BASE-T：Cat5e or later UTP(≤100 meter) |
||
|
Optical port characteristics |
Gigabit SFP optical fiber interface, the default is not equipped with optical modules, which need to be purchased separately, (optional order mode/multimode, single fiber/dual fiber optical modules, LC) |
||
|
fiber optic cable |
Multimode - working wavelength: 850nm, transmission distance: 0~500M; Single mode - working wavelength: 1310nm, transmission distance: 0-40KM; working wavelength: 1550nm, transmission distance: 0-120KM. |
||
|
function switch |
1 (E, D, P) three gears, the default state is "OFF", after "ON" is turned on, the function description is as follows: |
No |
|
|
E gear: When "ON", 1-16 ports long-distance 10M/250 meters + power supply port VLAN transmission mode; When "OFF", the normal 100m exchange transmission. |
No |
||
|
Chip parameters |
|||
|
Network protocol |
IEEE802.3 10BASE-T； IEEE802.3i 10Base-T； IEEE802.3u100Base-TX； IEEE802.3ab 1000Base-T； IEEE802.3z 1000Base-X； IEEE802.3x |
||
|
forwarding mode |
Store-and-forward (full wire speed) |
||
|
Backplane Bandwidth |
12.8Gbps (non-blocking) |
||
|
Packet forwarding rate@64byte |
5.36Mpps |
6.55Mpps |
|
|
MAC address table |
16K |
||
|
packet forwarding cache |
4M |
||
|
jumbo frame |
10K |
||
|
LED indicator |
Power indicator: PWR (green); Network indicator: Link (yellow); PoE indicator: PoE (green) |
||
|
PoE and Power Characteristics |
|||
|
POE power supply standard |
1-16 ports support IEEE802.3af/at standard POE power supply |
1-24 ports support IEEE802.3af/at standard POE power supply |
|
|
power pin |
Default 1/2(+), 3/6(-) 4-core power supply |
||
|
Maximum single port POE power |
30W, standard IEEE802.3af/at |
||
|
Total power/input voltage |
250W （AC100-240V） |
||
|
Power consumption |
Standby power consumption: <15W; full load power consumption: <240W |
Standby power consumption: <20W; full load power consumption: <250W |
|
|
power supply |

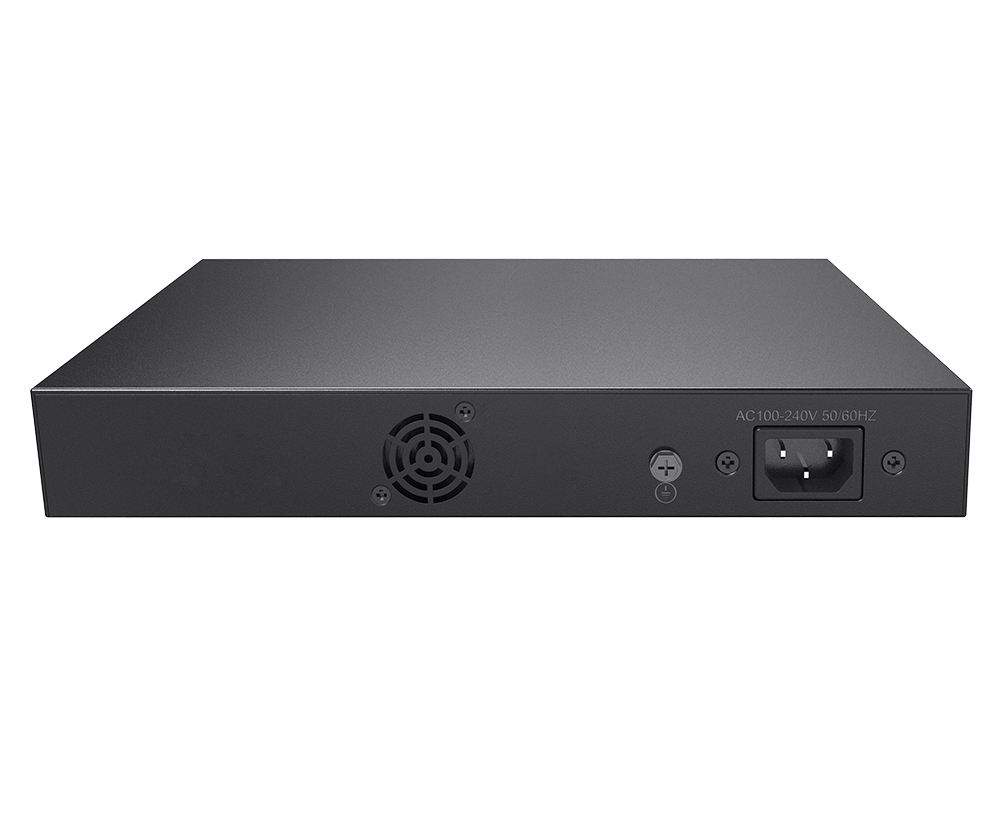

Built-in switching power supply, AC: 100～240V 50-60Hz 4.1A |
||
|
Physical Specifications |
|||
|
Working temperature/humidity |
-20～+55°C; 5%～90% RH non-condensing |
||
|
storage temperature/humidity |
-40～+75°C; 5%～95% RH non-condensing |
||
|
Appearance size (L*W*H) |
270*185*45mm |
290*200*44mm |
|
|
Net weight/Gross weight |
＜1.5kg / ＜1.7kg |
＜2.0kg / ＜2.3kg |
|
|
installation method |
Desktop, wall-mounted, rack-mounted |
||
|
Product Certification |
|||
|
Lightning Protection/Protection Level |
Port lightning protection: 4KV 8/20us; Protection class: IP30 |
||
|
Certification |
3C；
CE mark, commercial；CE/LVD EN60950； |
||
|
Model |
Device Information |
Standard power supply |
|
TD-P3316 |
Unmanaged 16 10/100M RJ45 ports + 2 10/100/1000M uplink RJ45 ports + 1 1000M SFP optical port slot, Ethernet POE switch, of which 1-16 ports support IEEE 802.3af/at international standards, Adjust the function switch to achieve 1-16 ports 10M/250m long-distance transmission, and support 1U/19-inch cabinet installation. |
250W |
|
TD-P3324 |
Unmanaged 24 10/100M RJ45 ports + 2 10/100/1000M uplink RJ45 ports + 1 1000M SFP optical port slot, Ethernet POE switch, of which 1-24 ports support IEEE 802.3af/at international standards, Support 1U/19-inch cabinet installation. |
250W |
