TD-F2-B
- - Tuya smart fingerprint lock.
- - Size: 36x345x21mm.
- - Zinc alloy panel, black oxidation treatment.
- - Unlock: IC card, fingerprint, PIN, dynamic password, key, Tuya App.
- - Double-locking function.
Diverse Access: uses IC card, fingerprint, PIN, dynamic password, mechanical key, or remote control.

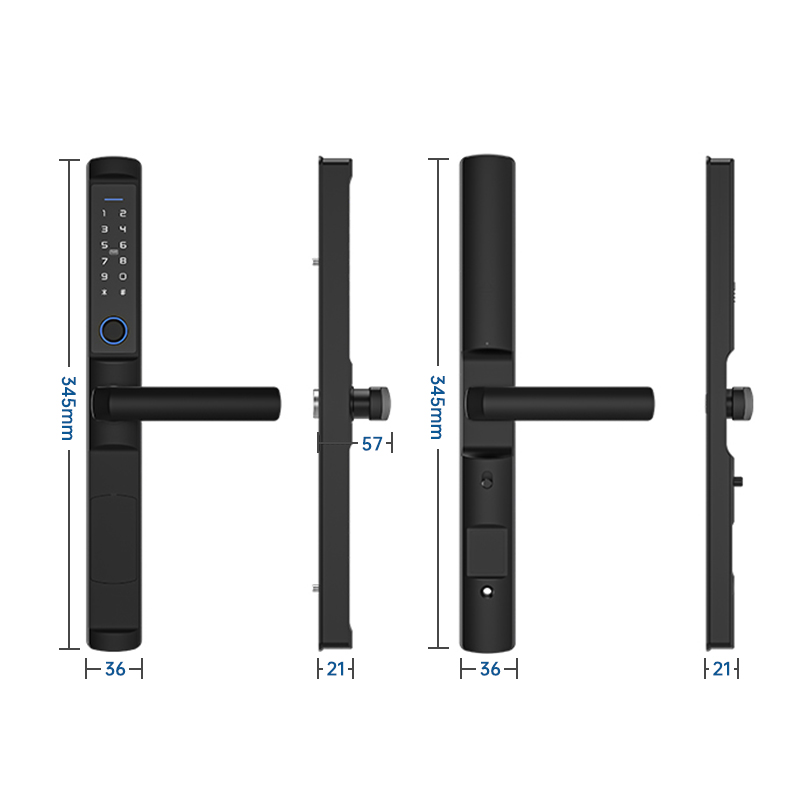

Compact Design: slim profile 36x345x21mm.
Top Security: fast semiconductor fingerprint recognition with minimal errors (≤0.0001%). Double-locking function.
Ample User Control: manage 9 administrators and store 300 card/fingerprint/PIN records.
User-Friendly: includes voice assistant, 12-bit touch keypad, Tuya App connectivity, low voltage alert, and quick ≤1-second unlocking.
Power Options: 4 AAA battery-powered, with emergency power port.
Package Information:
Inner box: 393x185x93mm/2.63kg, 1pc/box
Outer carton: 402x385x300mm/16kg, 6pcs/carton
Specifications:
Unlock Method
IC Card, fingerprint, PIN, dynamic password, key, remote control
Lock Dimension
36x345x21mm
Material
Zinc alloy panel,
black oxidation treatment
Administrators Capacity
9
Card & Fingerprint & PIN Capacity
Total 300 records
Password Length
4~8 digits
Phantom Password
32 digits
Fingerprint Sensor
Semiconductor
Fingerprint Contrast time
≦0.6 Second
Fingerprint Identification Angle
360°
False Rejection Rate
≦0.1%
False Recognition Rate
≦0.0001%
Reaction Time
≦0.1 Second
Battery
4pcs AAA alkaline batteries
Power
DC 6V
Emergency Power
DC 5V
Static Current
≦50uA
Dynamic Current
≦180mA
Working Temperature
-20℃~60℃
Working Relative Humidity
20%~90%RH
Voice Assistant
Support
Keypad
Standard 12-bit touch keypad
Low Voltage Alarm
4.6+0.2V
Unlock Time
≦1 Second
Tested Service Life
300,000 times
Connect to Tuya App
Wifi
Double-Locking
Support
