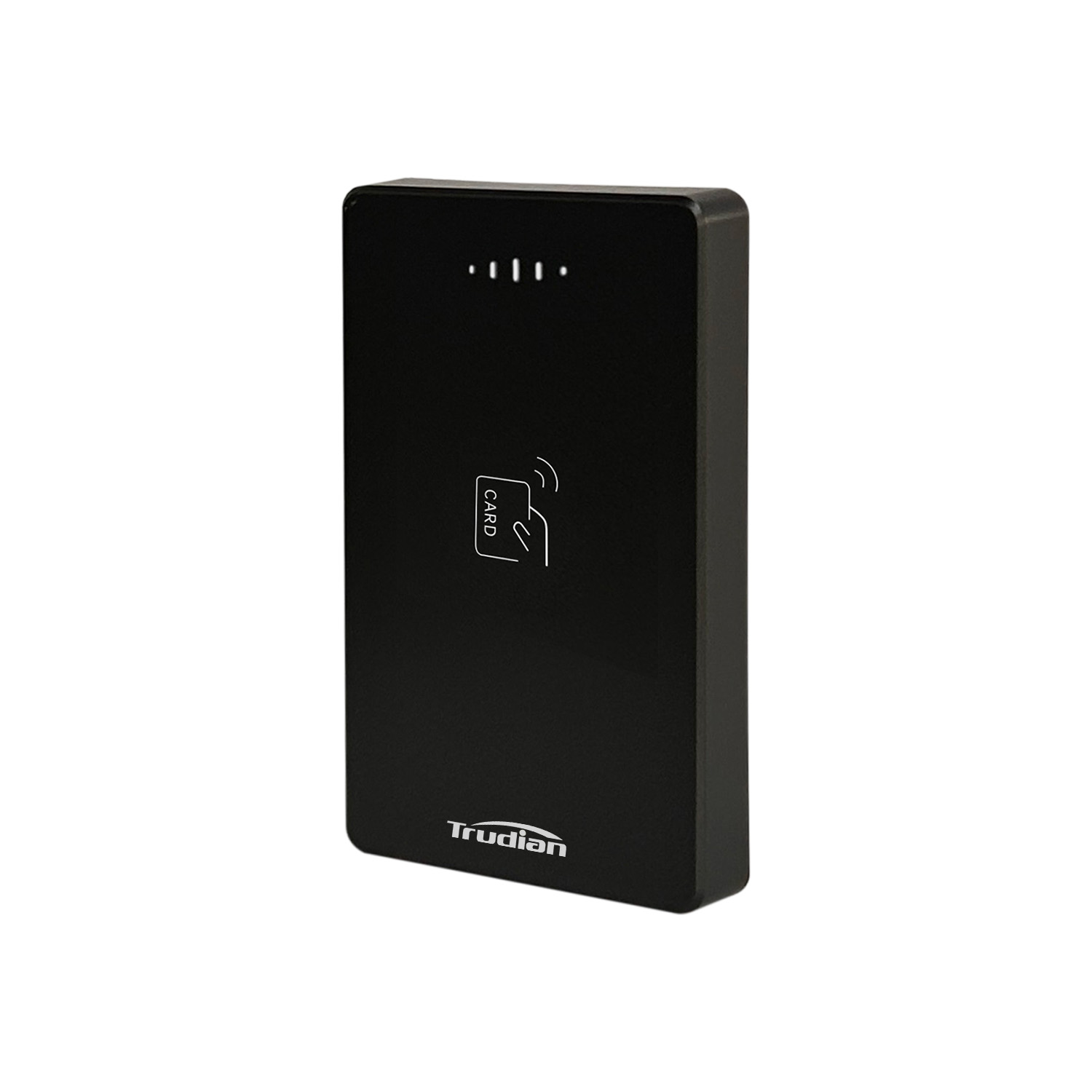

TD-RM05
TD-RM05
TD-RM05
TD-RM05

TD-RM05

  • - Unlocking Methods: Supports card unlocking method.
  • - Appearance Material: Constructed with ABS material, ensuring durability and longevity.
  • - Installation: Wall-mounted for easy setup.
  • - Water-proof: Utilizing the glue filling process enables the realization of waterproof capabilities.
Share to

Specifications

Unlocking Methods card
Appearance Material ABS
Appearance Size 118*72*16mm
Working Voltage DC12V
Standby Current 40mA±20mA
Working Current 60mA±20mA
OS Embedded system
CPU ARM Cortex M0
Memory 8K
Flash 64K
Reading Distance 0~6cm
Working Temperature -40~70
Working Humidity 10%~93%
Installation Method wall-mounted
Waterproof yes
External Interface
Power Supply 12V power interface
Wiegand 1 set of Wiegand bus communication interface
Wiegand Communication Mode 1 set of WG26/WG34 data format switching interface
Status Sync 1 set of controller-synced indicator/buzzer status signal interface
